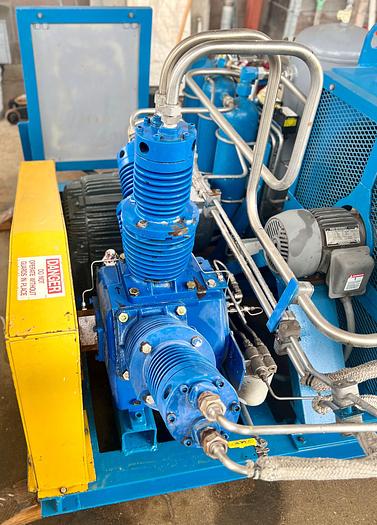

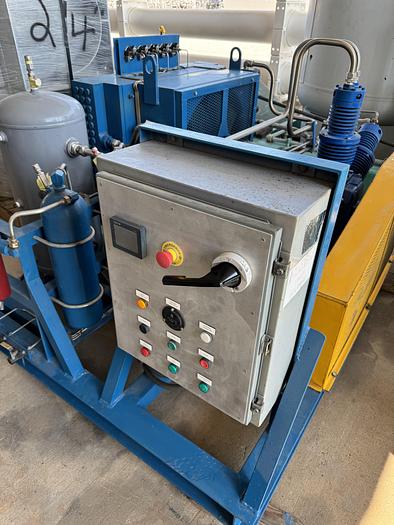

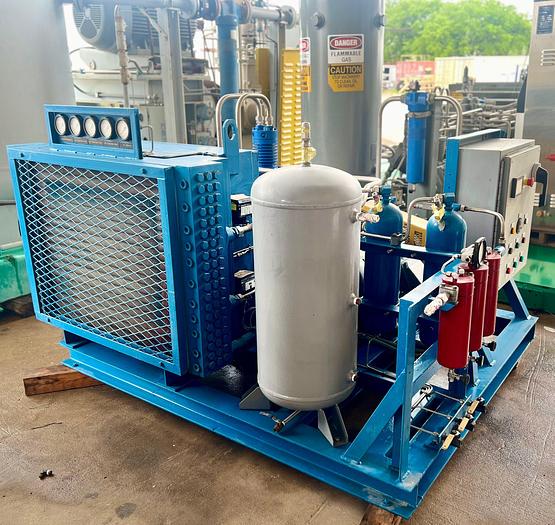

GreenField / Atlas Capco B33- Helium Compressor 100-2000psi to 3000 psi at 100 SCFM

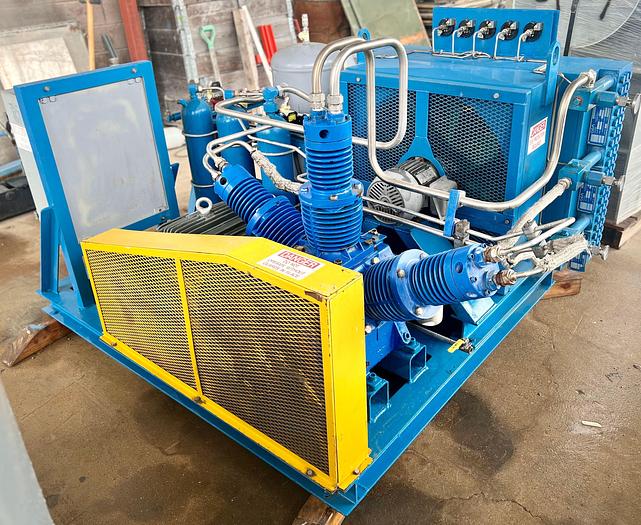

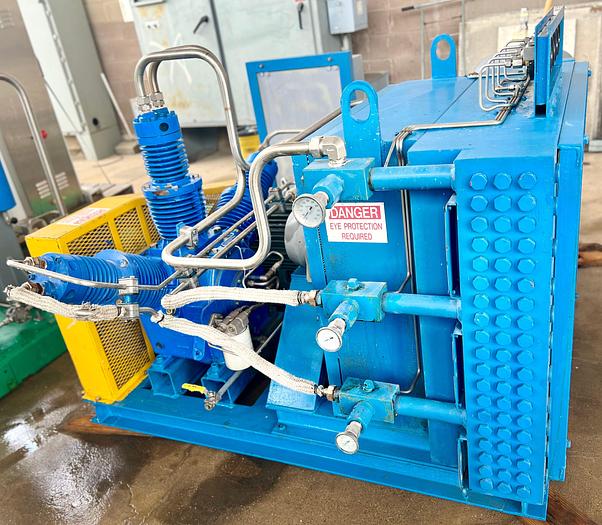

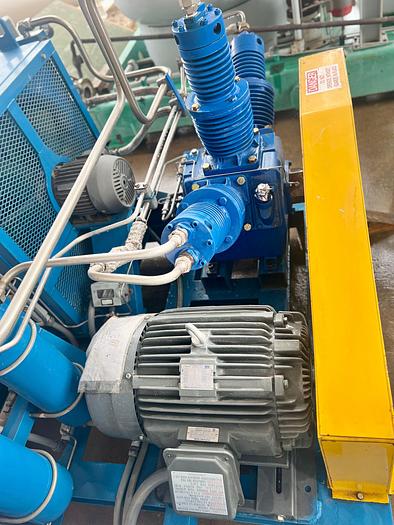

For sale very robust Greenfield / Atlas Capco B33-He compressor that was designed for Helium as a booster and will take 100 to 2000 psi pressure and compress to 3000 psi at up to 100 SCFM.

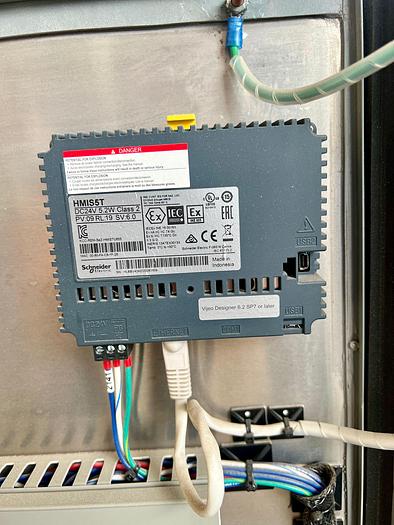

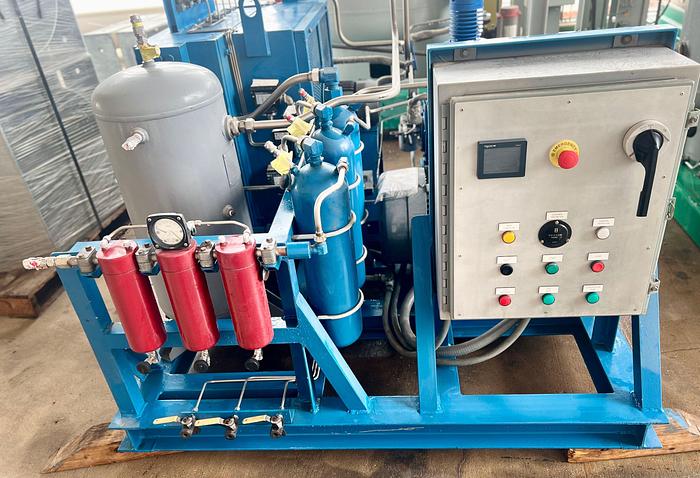

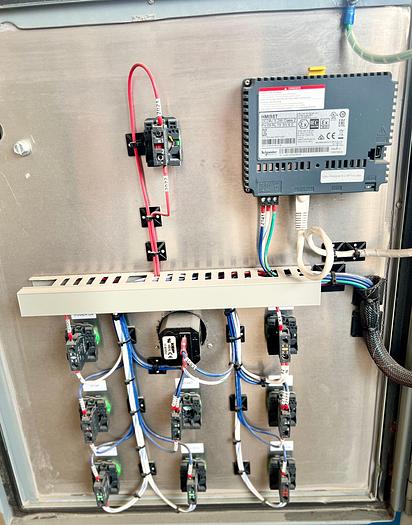

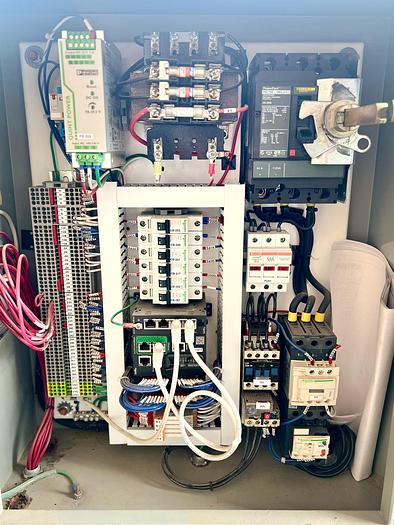

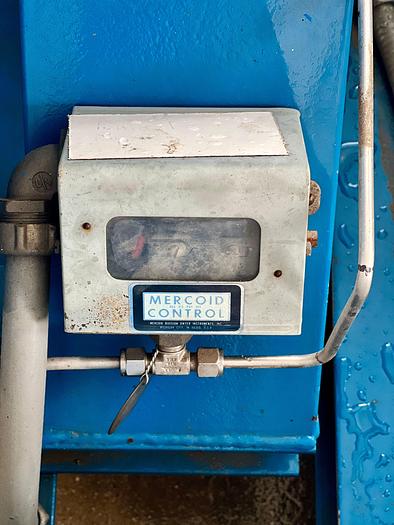

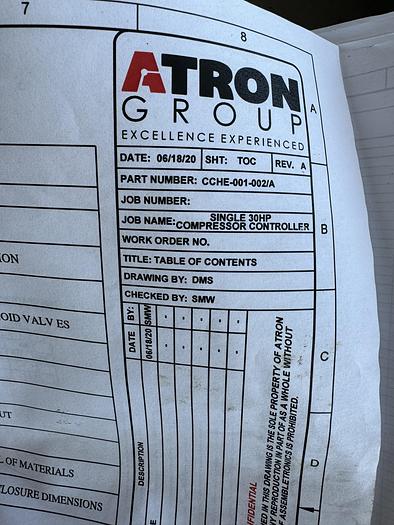

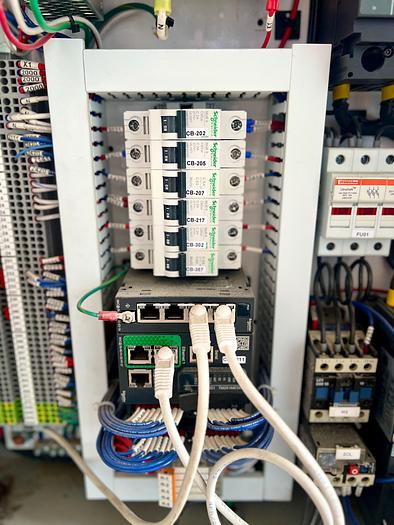

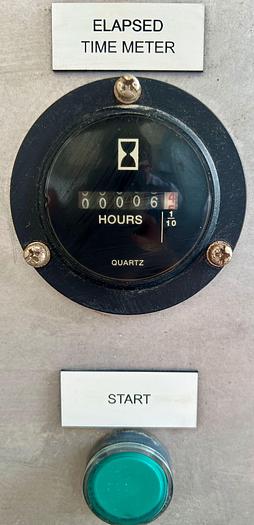

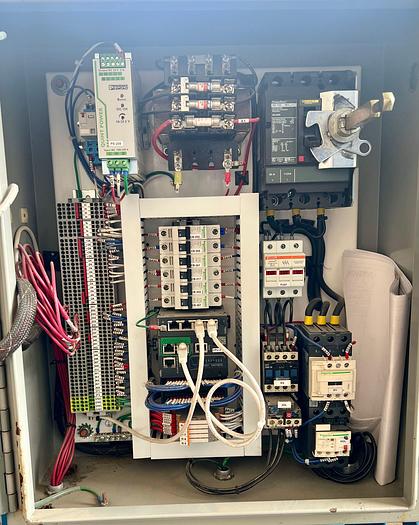

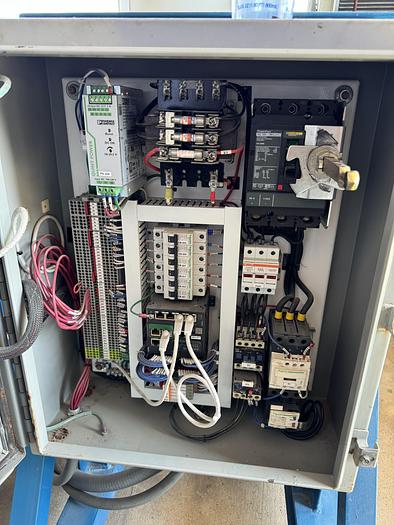

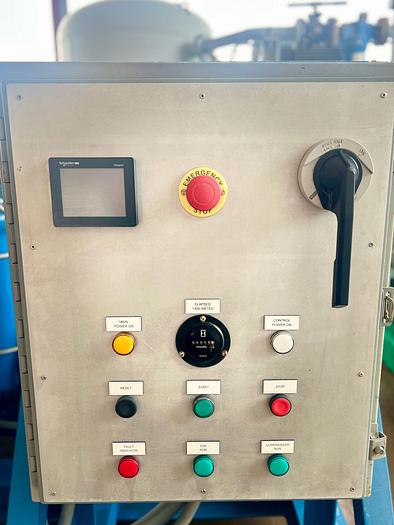

The compressor has zero hours, operational and looks estheticly pleasing. We had a 3-rd party Control company going through all of the controls to bring them up to the standard in 2021 and to ensure everything is in working order. We have all of the manuals, schematic and maintenance guidance for the compressor. We have some spare parts as well.

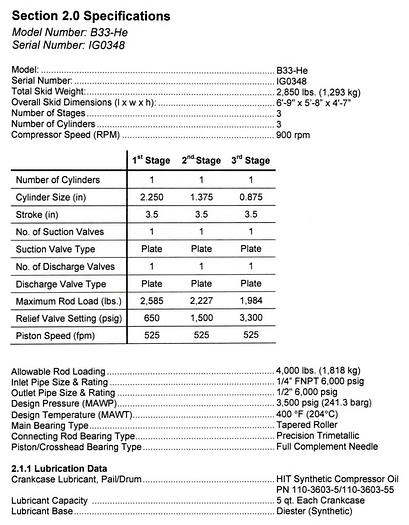

Specifications:

Suction Pressure: 100/2000 PSIG

Discharge Pressure: 3000 PSIG

Capacity: 50/100 SCFM

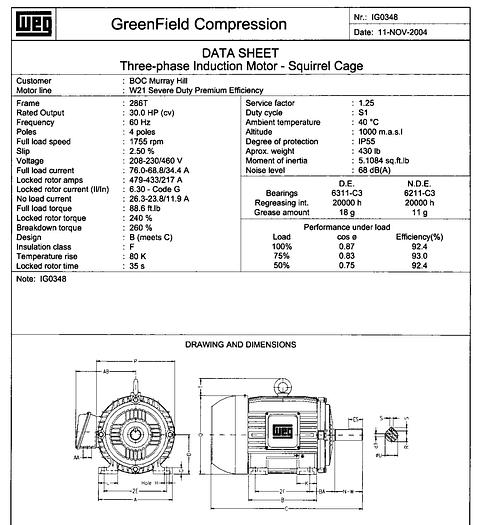

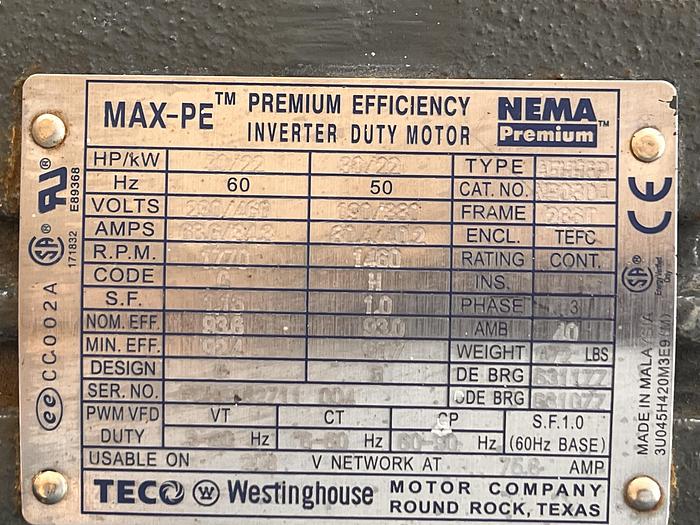

Horse Power: 30HP

Speed: 900RPM

Total Skid Weight: 2,850 Lbs (1,293 Kg)

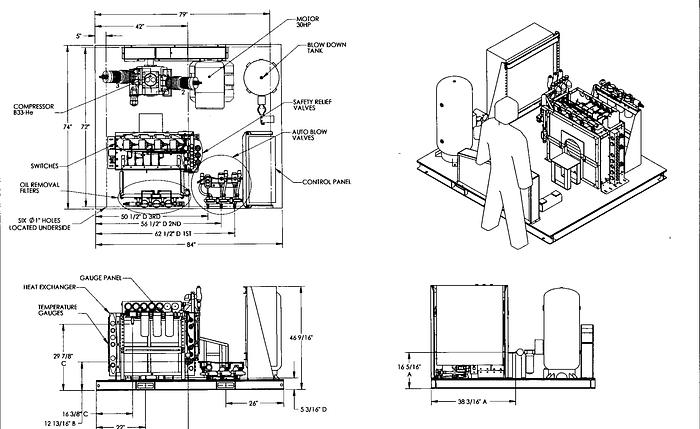

Overall Skid Dimensions (LxWxH) 6'9"x 5'8"x 4'7"

Number of Stages: 3

Number of Cylinders: 3

Compressor Speed (RPM) 900rpm

Stage Descriptions:

Stage 1:

1 Cylinder, Cylinder size ( 2.250 in), (3.5 in) Stroke, 1 Suction Valve, Suction Valve Type (Plate) 1 Discharge Valve, Discharge Valve type (Plate), Maximum Rod load (2,585Lbs), Relief Valve Setting (650 Psig), Piston Speed (525 fpm).

Stage 2:

1 Cylinder, Cylinder size ( 1.375 in), (3.5 in) Stroke, 1 Suction Valve, Suction Valve Type (Plate) 1 Discharge Valve, Discharge Valve type (Plate), Maximum Rod load (2,227Lbs), Relief Valve Setting (1,500 Psig), Piston Speed (525 fpm).

Stage 3:

1 Cylinder, Cylinder size ( 0.875 in), (3.5 in) Stroke, 1 Suction Valve, Suction Valve Type (Plate) 1 Discharge Valve, Discharge Valve type (Plate), Maximum Rod load (1,984Lbs), Relief Valve Setting (3,300 Psig), Piston Speed (525 fpm).

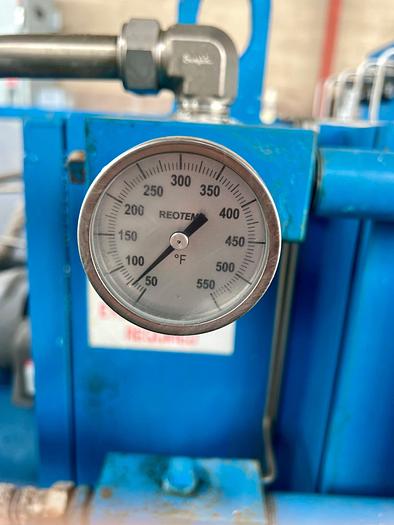

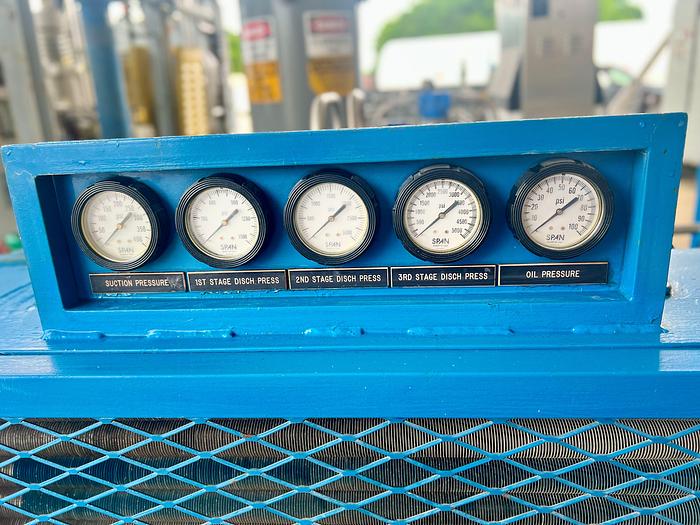

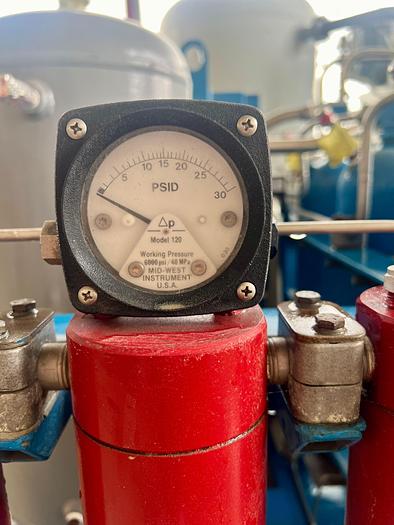

Gauge Details:

Allowable Rod Loading: 4000Lbs

Inlet Pipe Size and Rating: 1/4" FNPT 6000PSIG

Outlet Pipe Size and Rating: 1/2" 6000 PSIG

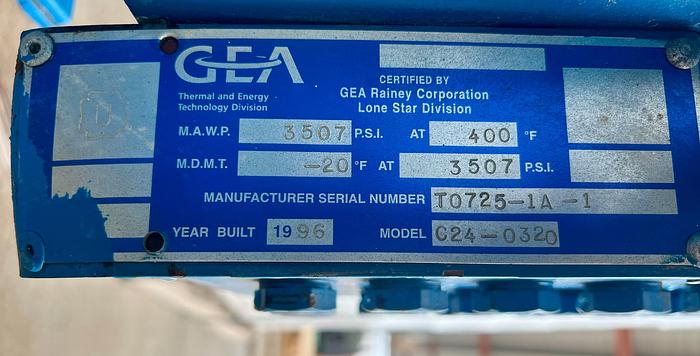

Design Pressure(MAWP): 3500 PSIG (241.3 Barg)

Design Temperature(MAWT): 400 degrees Fahrenheit (204 degrees Celcius)

Main Bearing Type: Tapered Roller

Connecting Rod Bearing Type: Precision Tremetallic

Piston/ Crosshead Bearing Type: Full Complement Needle

Greenfield Description:

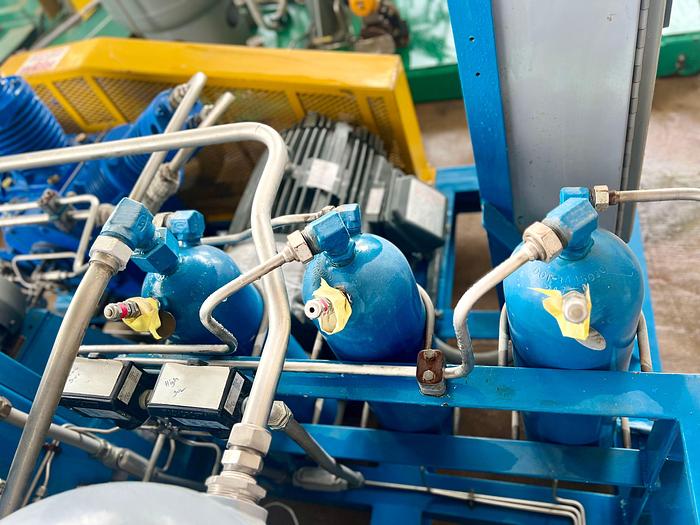

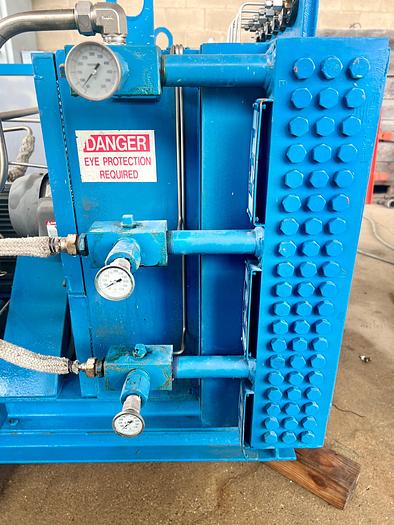

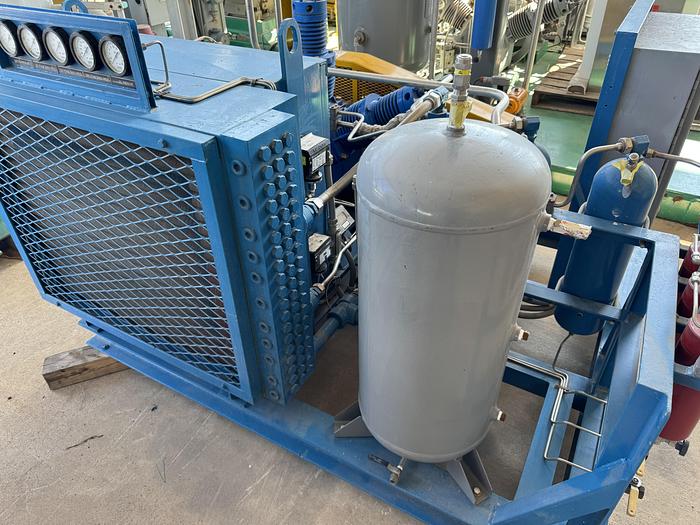

Greenfield Compressors are heavy-duty gas compressors designed for safe, reliable service in continuous operation. The cylinders, heads, and crankcase are externally cooled by forced air from a motor-driven fan. Cooling of the compressed air/gas stream is provided by the gas-air heat exchangers.

Pre-purchase inspections are welcomed during normal business hours upon appointment scheduled in advance. We would be happy to provide a complimentary transportation pick up from DFW Airport and back if you want to fly in and see/send someone to inspect the compressor skid in person. In addition, we can do Facetime/teams/ Zoom calls to go over the skid in person for any domestic /international procurement. Please keep in mind that we are in Dallas and therefore are on the US Central Time (CT) for any communication arrangements.

Shipping Arrangements: The unit is currently located at our South Dallas, Texas yard. We can assist with shipping arrangements and when properly scheduled, we will provide loading service at no additional charge.

Payment: Payment in full FOB for our yard in South Dallas is required for equipment procurement. We prefer to see/meet the purchaser to ensure we can provide adequate after-sale support to set your project for success. We will require a verifiable Cashier check as a payment if you are planning to come in person. We will require a wire transfer in full with the transaction cleared the company account before releasing the equipment to any 3-rd party shipper companies.

We are here to help and make this transaction as simple as possible, but will take all necessary measures to protect us and you.
