RIX 4VX SERIES - 40HP Helium compressor 60 scfm 50 psi to 3300 psi - (1 of 2)

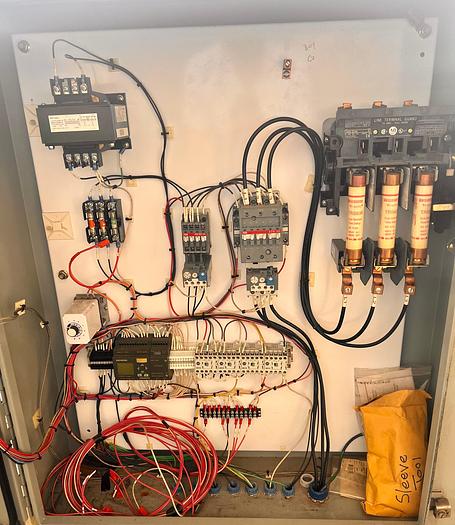

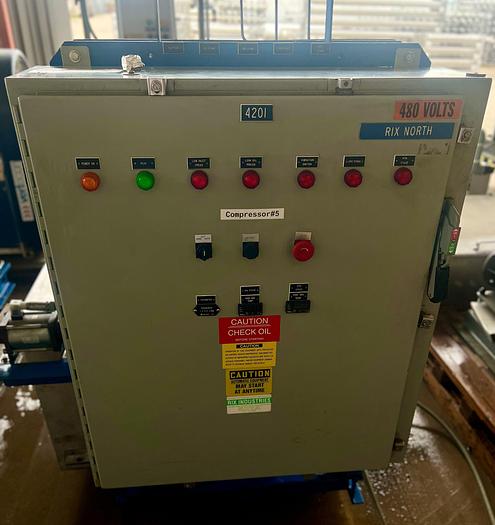

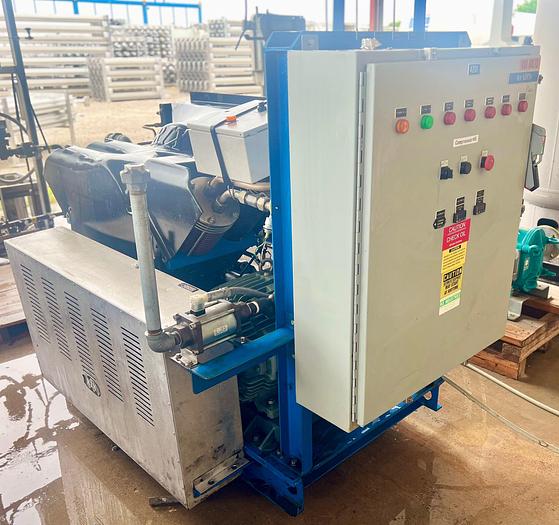

For sale used RIX Industries’ 4VX4BG - 17.5, 4 stage oil-free 40 HP helium compressor 50 psi to 3300 psi at 60 SCFM with control panel.

This is 1 of the 2 identical units we may have available for sale. The listing is for the unit you see on the pictures and described here.

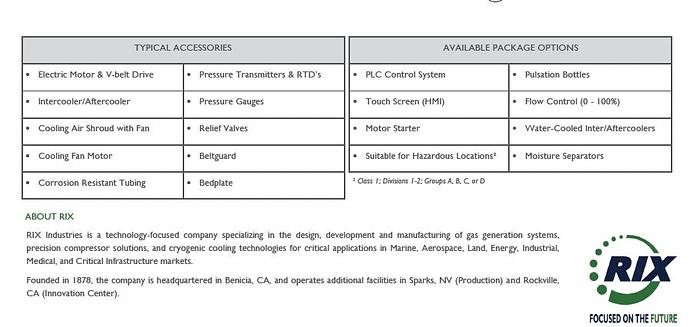

FEATURES: Modular Design - Flexible cylinder configurations for up to 4 stages of oil-free compression to meet a wide range of applications• Air-cooled heat exchangers, compression cylinders, and crankcase - Compact/light weight package that is easy to transport and service for years to come• Pressure lubricated crankcase - Durability and simplicity (uses standard automotive engine oil)• Rated for 100% Continuous Duty

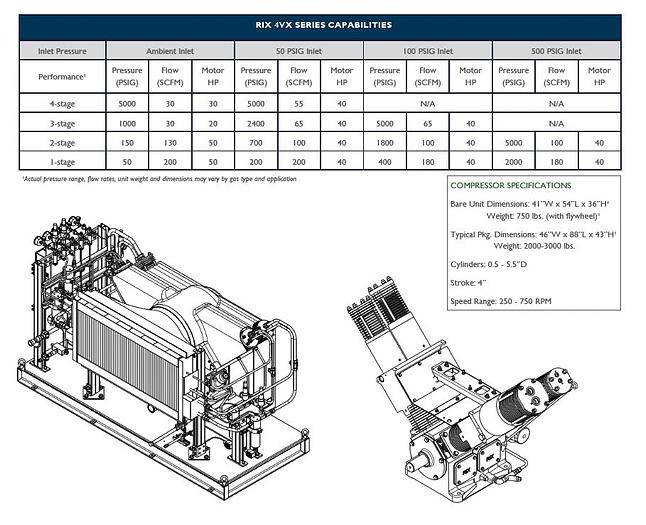

RIX 4VX SERIES UNITS PERFORMANCE SPECIFICATIONS:

PRESSURE RANGE: 50-5000 PSIG

TYPICAL FLOW CAPACITY: 30-200 SCFM

POWER: Up to 50 HP

GAS TYPE: Ar, He, H2, O2, N2, CNG & other gas compositions

THIS COMPRESSOR SPECIFICATIONS:

PRESSURE RANGE: Inlet 50 psi - outlet 3300 psi

FLOW CAPACITY: 60 SCFM

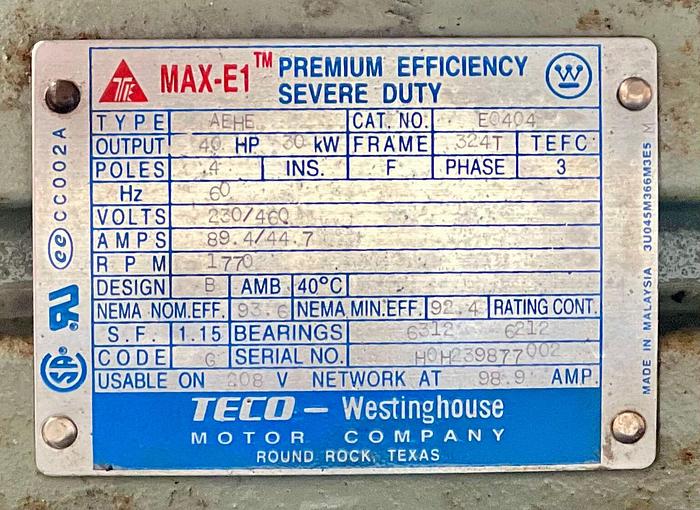

POWER: 40 HP

GAS TYPE: He

Cylinder 0.5-5.5"D

Stroke 4"

Speed Range: 250-750 RPM

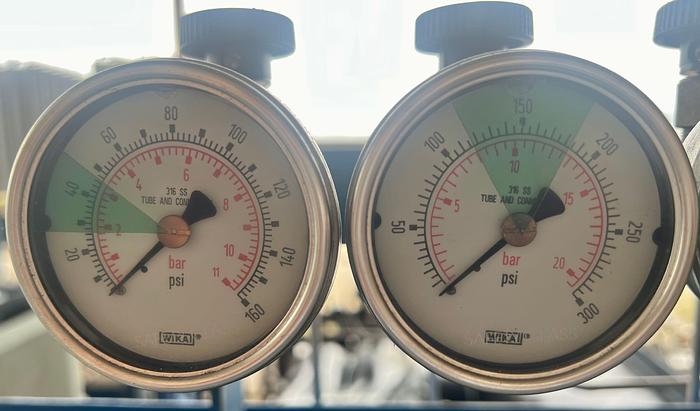

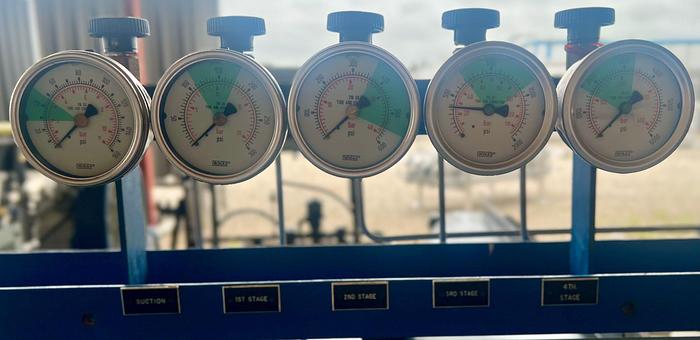

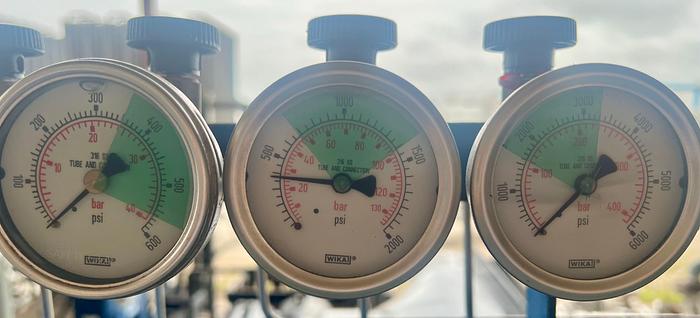

NORMAL OPERATING PRESSURE RANGE:

Suction 50PSIG

1st Stage 140 PSIG

2nd Stage 400 PSIG

3rd Stage 1300 PSIG

4th Stage 3300 PSIG

BPR Setting 500 PSI (Approximate)

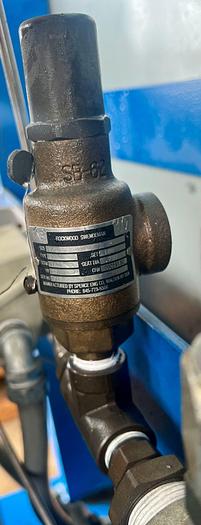

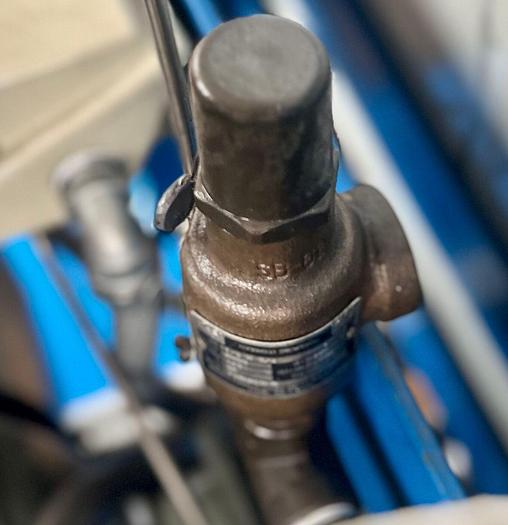

RELIEF VALVE SETTINGS

Stage Symbol Set Point

Suction 75 PSIG

1st Stage RV1 250 PSIG

2nd Stage RV2 600 PSIG

3rd Stage RV3 1500 PSIG

4th Stage RV4 3500 PSIG

OPERATING TEMPERATURES

Location Normal Range

1st Stage Discharge Gas 320 degrees Fahrenheit

1st Stage Discharge After Cooler 20 degrees above ambient

2nd Stage Discharge Gas 330 degrees Fahrenheit

2nd Stage Discharge After Cooler 20 degrees above ambient

3rd Stage Discharge Gas 340 degrees Fahrenheit

3rd Stage Discharge After Cooler 20 degrees above ambient

4th Stage Discharge Gas 320 degrees Fahrenheit

4th Stage Discharge After Cooler 20 degrees above ambient

The above operating temperatures are based on an ambient temperature of 100 degrees Fahrenheit.

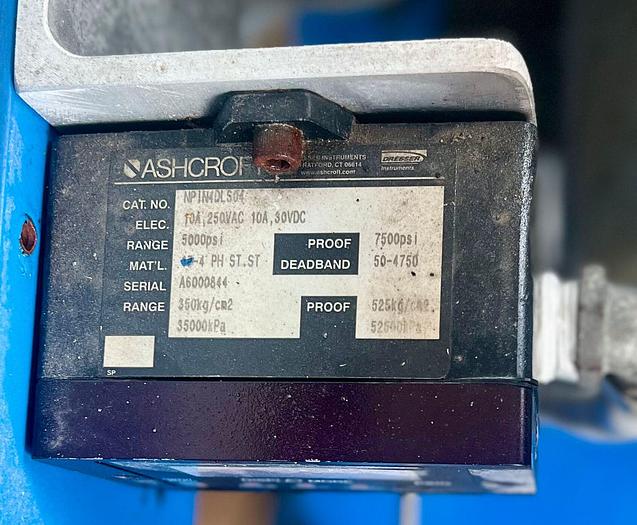

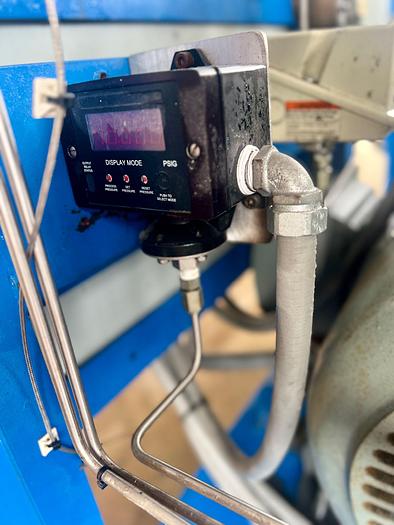

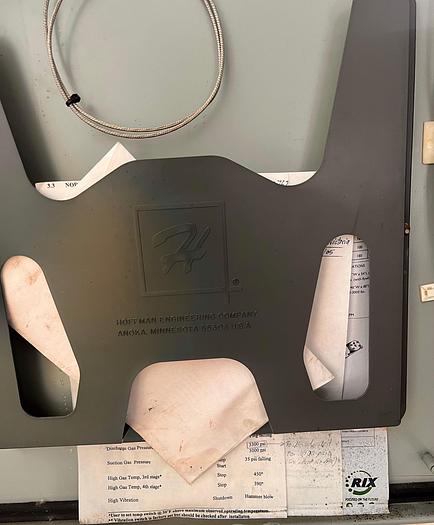

SAFETY SWITCH SETTINGS

Switches Symbol Function Set Point

Oil Pressure PSO Shutdown 25 PSI falling

Discharge Gas Pressure PSR Stop 3300 PSI

Start 3000 PSI

Suction Gas Pressure Stop 35PSI Failing

Start

High Gas Temp, 3rd stage* Stop 450 Degrees Fahrenheit

High Gas Temp, 4th stage* Stop 390 Degrees Fahrenheit

High Vibration Shutdown Hammer blow

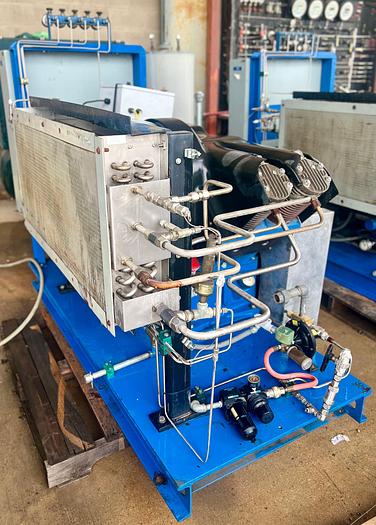

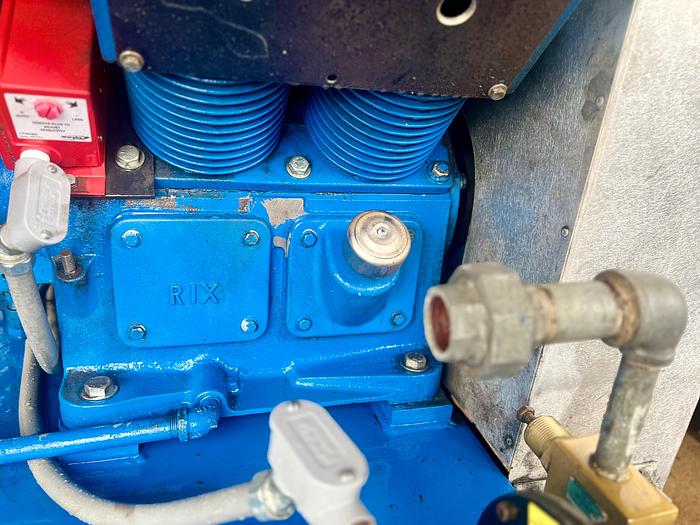

The compressor has 2 cylinders, 2 heads, 2 valves missing (Stage 2 and 3) Please see pictures. The motor turns with no problems.

Dimensions:

Bare Unit Dimensions: 41”W x 54”L x 36”H¹

Weight: 750 lbs. (with flywheel)¹

Typical Pkg. Dimensions: 46”W x 88”L x 43”H¹

Weight: 2000-3000 lbs.

Pre-purchase inspections are welcomed during the normal business hours upon appointment scheduled in advanced. We would be happy to provide a complimentary transportation pick up from DFW Airport and back if you want to fly in and see / send someone to inspect the compressor skid in person. In addition, we can do facetime / teams / zoom calls to go over the skid in person for any domestic /international procurement. Please keep in mind that we are in Dallas and therefore are on the US Central Time (CT) for any communication arrangements.

Shipping Arrangements: The unit is currently located at our yard South of Dallas, Texas. We can assist with shipping arrangements and when properly scheduled, we would provide loading service at no additional charge.

Payment: Payment in full FOB our yard in South Dallas is required for equipment procurement. We prefer see / meet the purchaser to ensure we can provide adequate after sale support to set your project for success. We will require verifiable Cashier check as a payment if you are planning to come in person. We will require wire transfer in full with transaction cleared the company account prior to releasing the equipment to any 3-rd party shipper companies. We are here to help and make this transaction as simple as possible, but will take all necessary measures to protect us and you.

Feel free to call / contact Gas Equipment 4 Sale with any questions; we will be happy to jump on the call and see if / how procuring this brand new cng compressor can help you to meet your project needs.

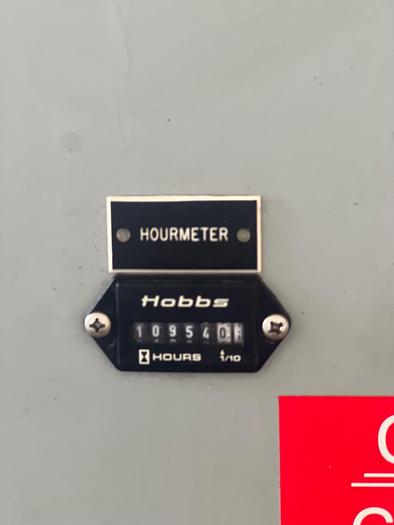

With 10,954 hours of run time, this compressor showcases its durability and reliability, demonstrating its capability to handle intensive operations with ease. Whether in industrial settings, petrochemical plants, or offshore platforms, this compressor is a testament to precision engineering and uncompromising quality.
