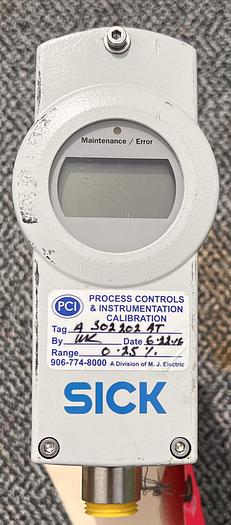

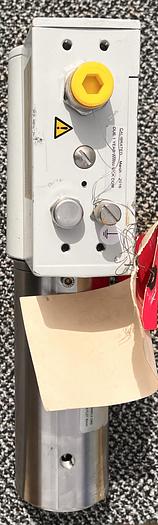

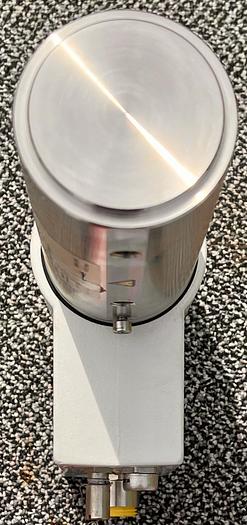

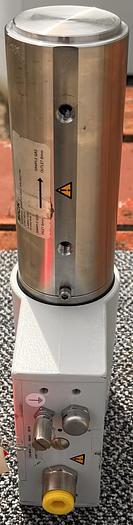

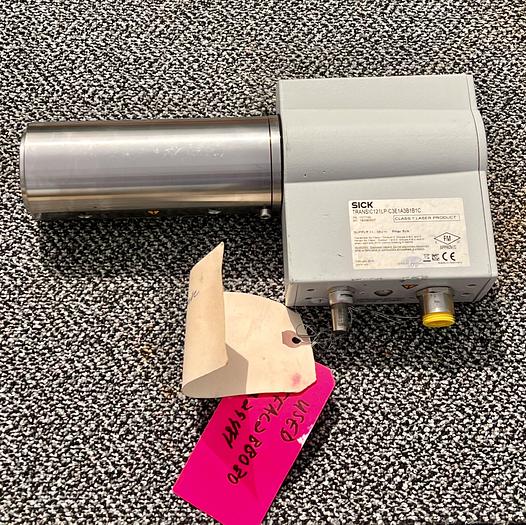

TRANSIC121LP OXYGEN MEASURING DEVICE CLASS 1 LASER PROJECT

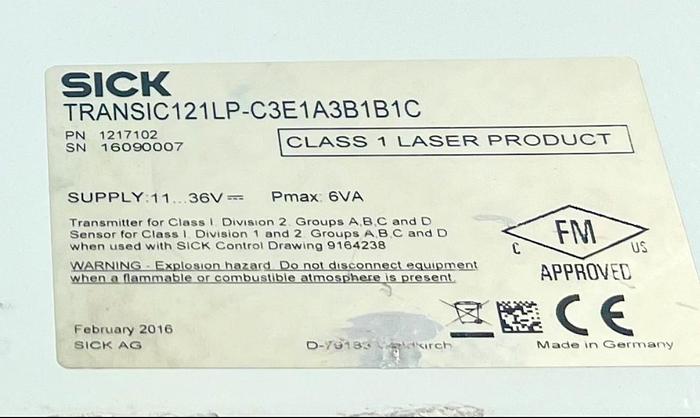

Supply: 11....36V

PMax: 6VA

Transmitter for class 1 Division 2 Groups A,B,C

Sensor for Class 1 Division 1 and 2 Groups A,B,C

TRANSIC121LP Code

A. With flange adapter <0.5 bar for process measurements

B. For ambient gas measurement, wall fitting

C. With sample gas cell for extractive measurement PN10

The TRANSIC121LP is a stationary oxygen transmitter and serves continuous measurement of oxygen in the industrial sector.

There are 3 variants of the TRANSIC121LP:

1. In-situ Measurement
2. Extractive Measurement
3. Measurement in ambient air

• The TRANSIC121LP is certified for a process-side operating range from 800 bar to 1400 bar.

The TRANSIC121LP functions using light absorption of a tunable diode laser (Tunable Diode Laser Absorption Spectroscopy TDLAS). The gas concentration is measured using the dampening of a laser beam sent from a tunable diode laser source in the gas sample. For oxygen measuring, the laser beam wavelength is set to match one of the characteristic absorption lines of oxygen in the wavelength range of around 760 nm in the near-infrared range (NIR) of the electromagnetic spectrum.
