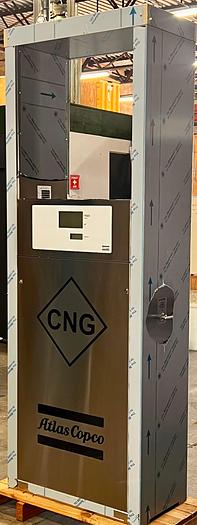

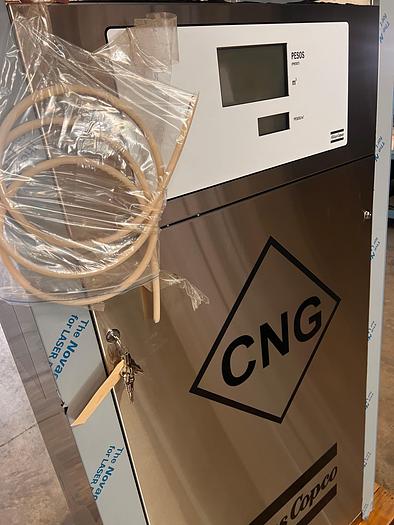

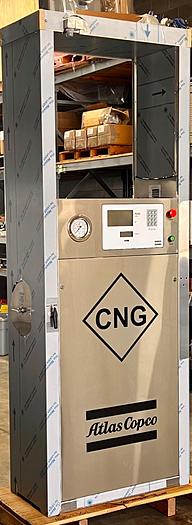

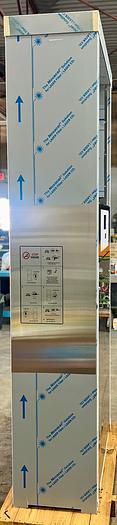

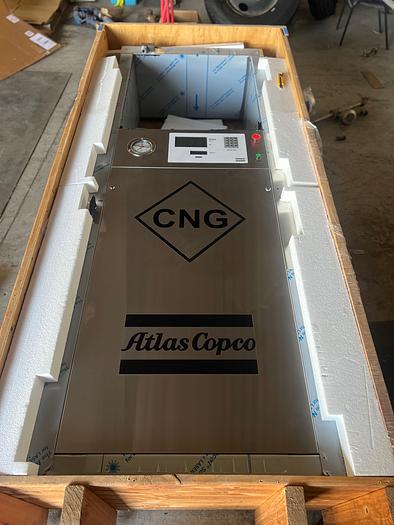

Compac CNG Dispenser - 3000 psi Brand New

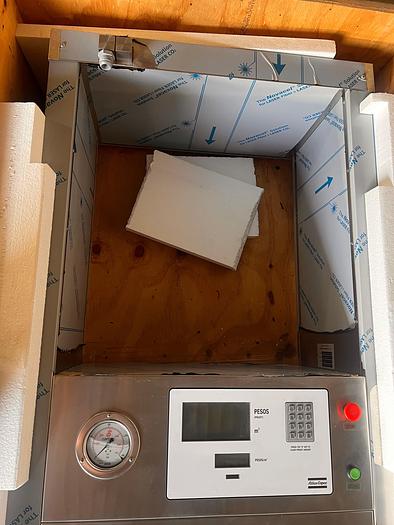

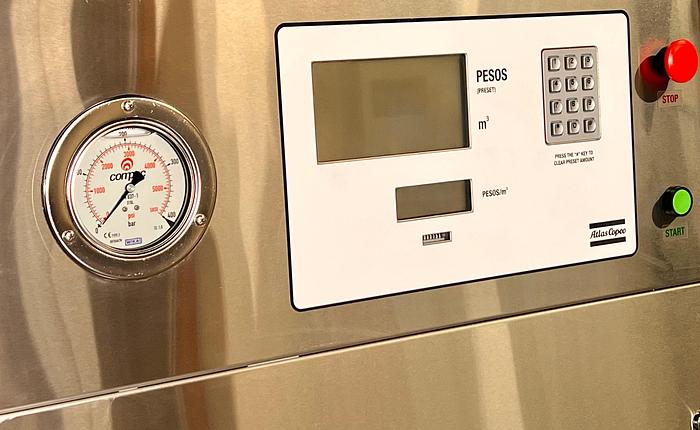

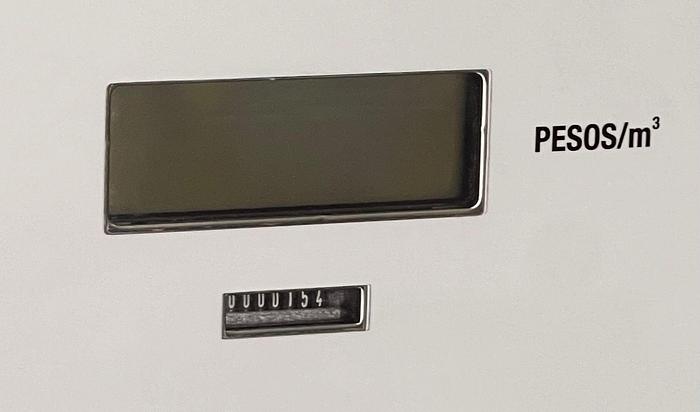

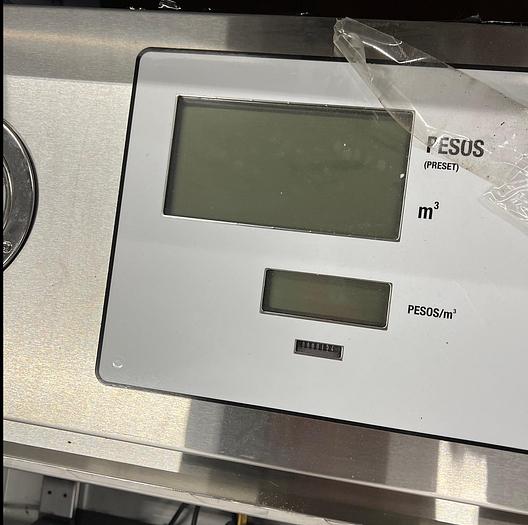

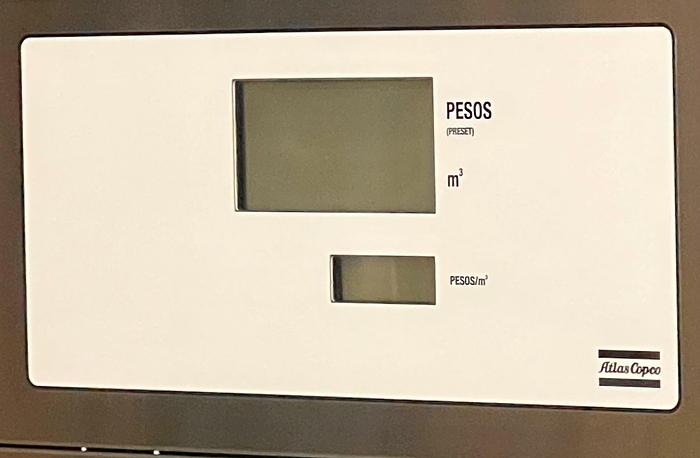

Hight Flow CNG Dispenser - Brand new still in the box. One sided 3000 psi. Design for Latin Market and collaborated to display the price in KG. Can be adjusted to display in Gallons and Dollars....

Technical Specifications

• Air Temperature Range- 25 °C to + 55 °C
• Air Humidity Range- 10%-95%
• Gas Type- High-pressure natural gas(CNG)
• Gas Temperature-40 °C to + 80 °C (continuous), 55 °C to + 80 °C (intermittent)
• Maximum Water Dew Point- 32 °C at 250 bar
• Maximum Working Pressure (Inlet)- 275 bar (350 bar option)
• Power Requirements- 110-120Vac +/-10%, 50/60Hz, 2A

High Flow Model Specific Specifications:

• Flow Rate-1-50kg/min

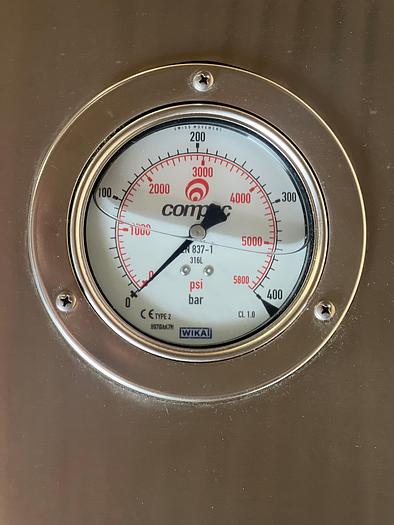

• Pressure Rating- 275 Bar 3988(PSIG)

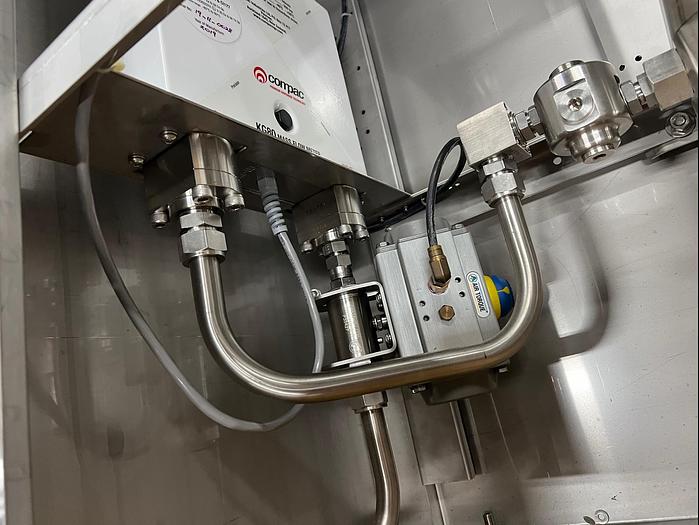

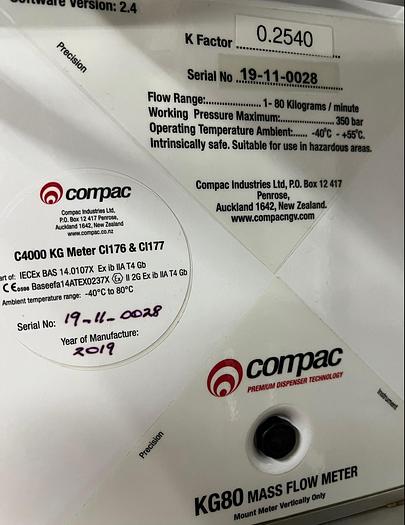

• Meter- Compac KG80 coriolis mass flow

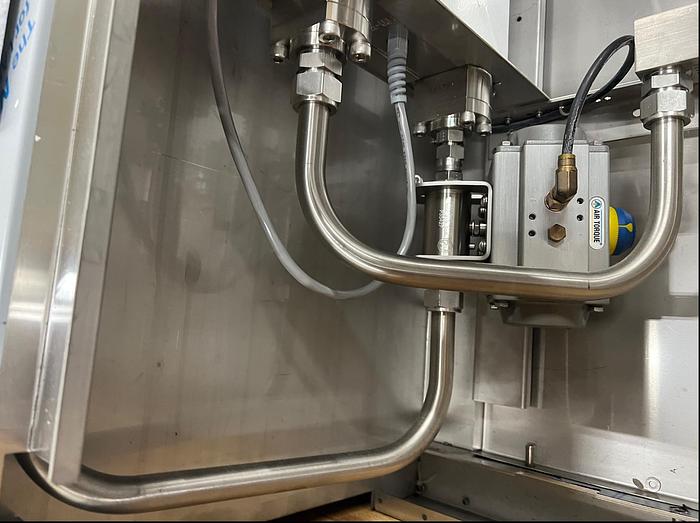

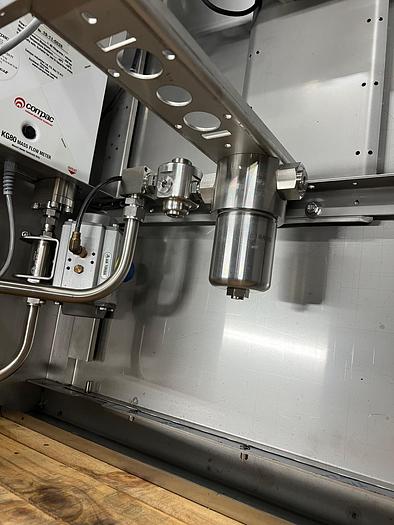

• Internal Pipework- 1/2"

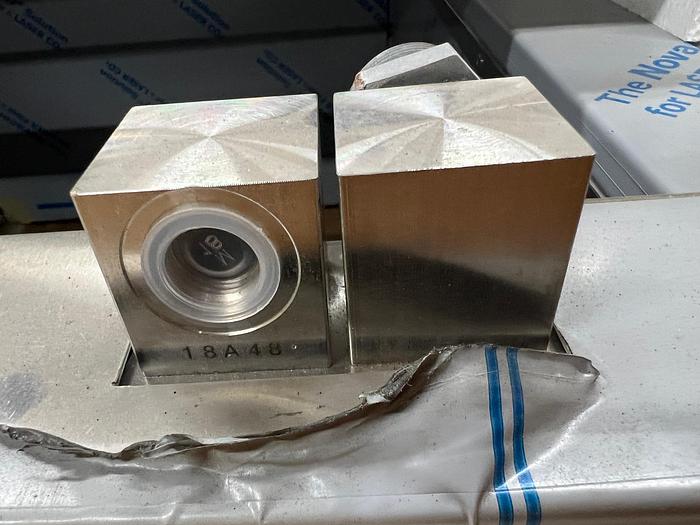

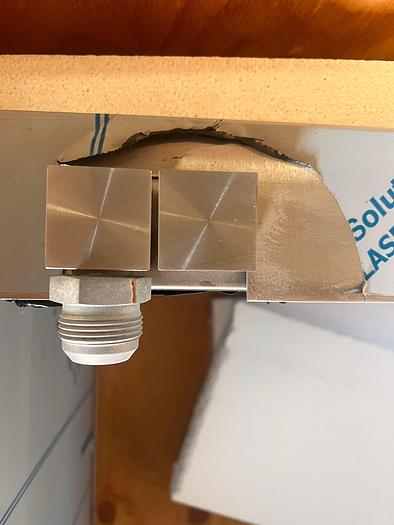

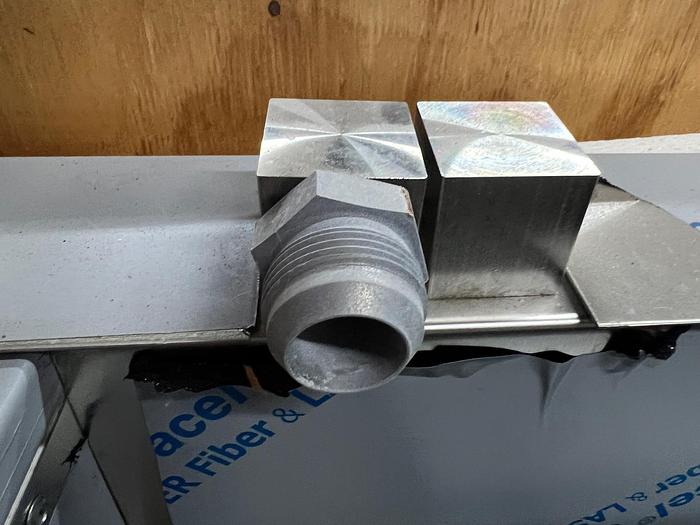

• Inlet- 3 1/4"
• Outlet 3 1/8"
• Refuelling Hose- 1/2"
• Refueling Valve- NGV1 or NGV2
• Laser (without hoses or high mast)- 830W x 450D x 1608H
• Legend (without hose)- 850W x 425D x 2355H
• Minimum Flow cut-off- .5-10 Kg/Min
• Max Flow cut-off- 10-99Kg/Min

Pre-purchase inspections are welcomed during the normal business hours upon appointment scheduled in advanced. We would be happy to provide a complimentary transportation pick up from DFW Airport and back if you want to fly in and see / send someone to inspect the item in person. In addition, we can do facetime / teams / zoom calls to go over the skid in person for any domestic /international procurement. Please keep in mind that we are in Dallas and therefore are on the US Central Time (CT) for any communication arrangements.

Shipping Arrangements: The unit is currently located at our yard South of Dallas, Texas. We can assist with shipping arrangements and when properly scheduled, we would provide loading service at no additional charge.

Payment: Payment in full FOB our yard in South Dallas is required for equipment procurement. We prefer see / meet the purchaser to ensure we can provide adequate after sale support to set your project for success. We will require verifiable Cashier check as a payment if you are planning to come in person. We will require wire transfer in full with transaction cleared the company account prior to releasing the equipment to any 3-rd party shipper companies. We are here to help and make this transaction as simple as possible, but will take all necessary measures to protect us and you.

Feel free to call / contact Gas Equipment 4 Sale with any questions; we will be happy to jump on the call and see if / how procuring this brand new cng dispenser can help you to meet your project needs.
