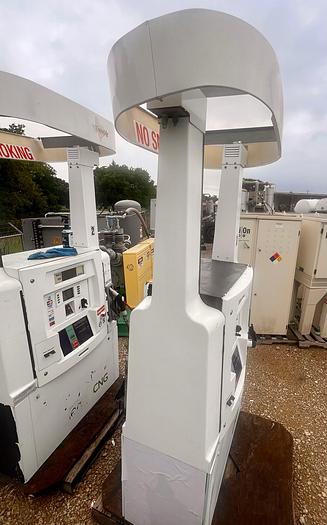

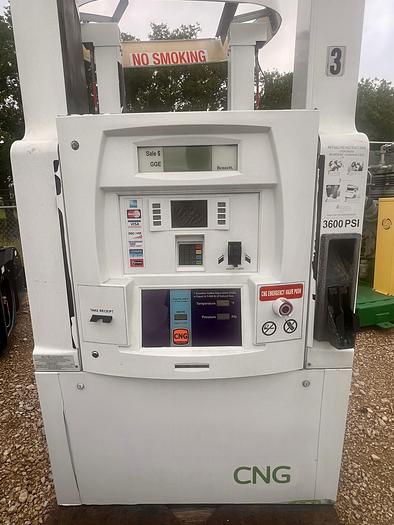

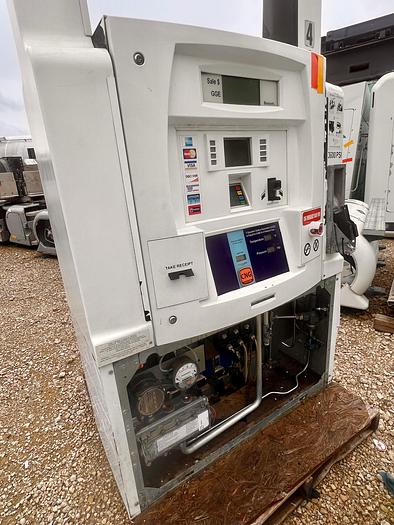

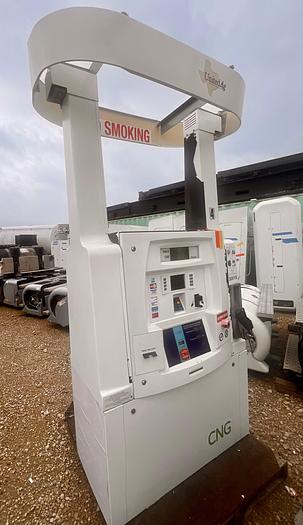

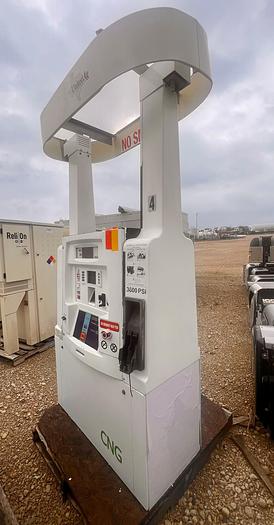

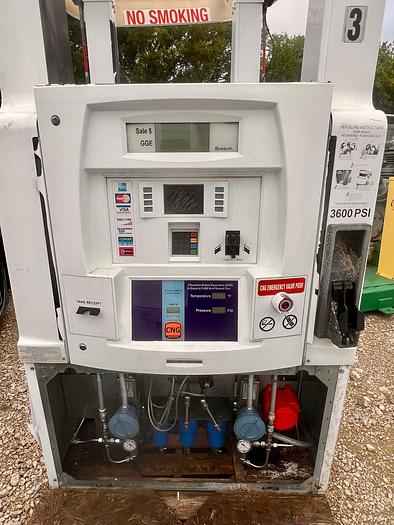

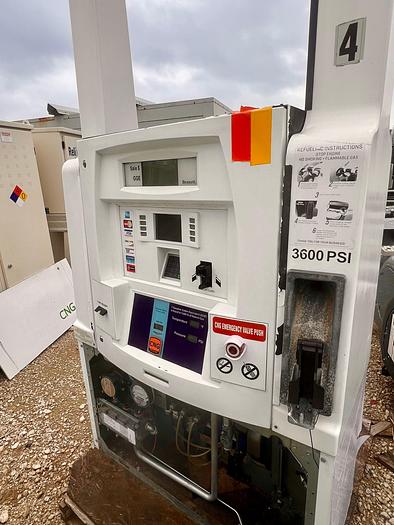

Bennett CNG Retail Dispenser

STANDARD FEATURES

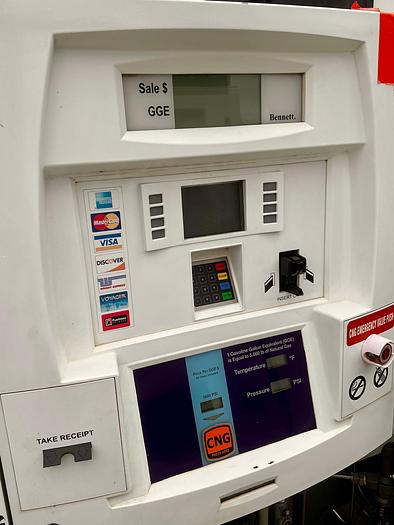

• 7” Widescreen Display with Soft Keys
• Illustrative Full Fill Gauge
• User Training Slides

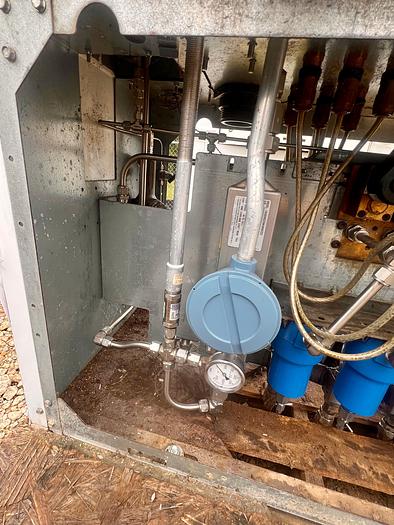

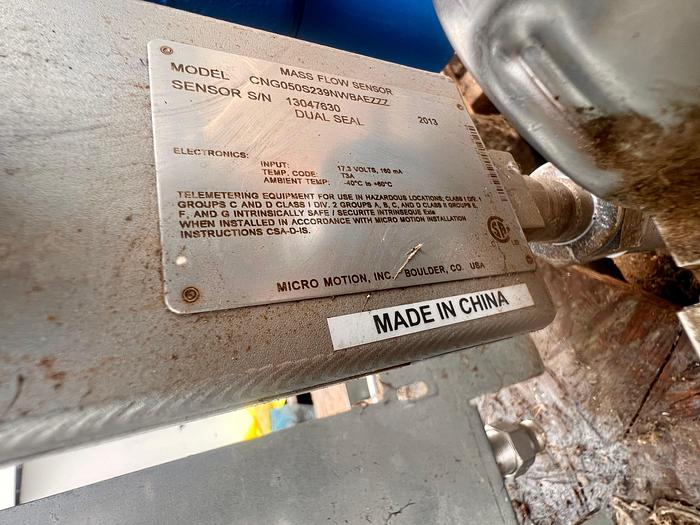

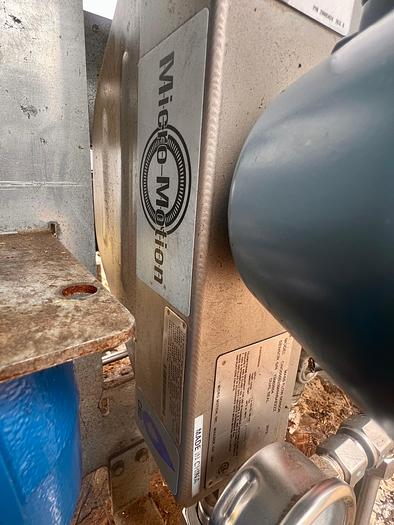

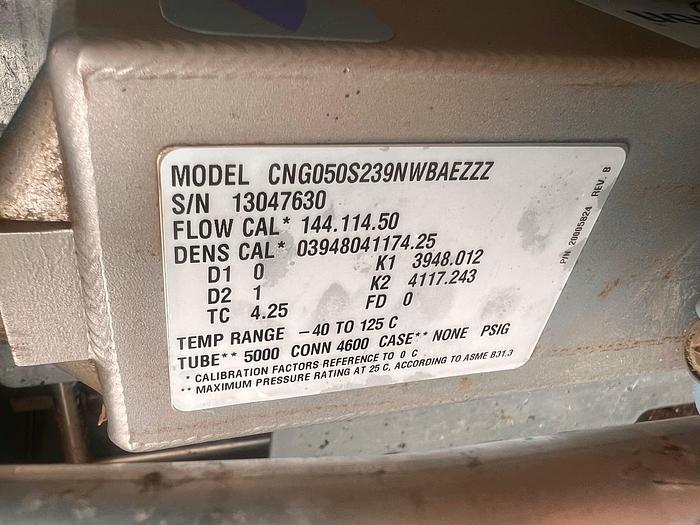

• Micro-Motion Coriolis Meter

PAYMENT OPTIONS

• EMV: 7” Widescreen with soft keys, Hybrid Chip EMV Card Reader, PCI-Compliant EMV ready EPP, High-Speed Receipt Printer
• CREDIT-ALPHA: Alphanumeric integrated pay-at-the-pump system with 7” display for fleet and long-haul consumers

DIMENSIONS:

• 44.75″w x 94.5″h x 20.5″d / 760lbs113.6cm x 240cm x 52cm / 340kg

UNIT TYPE:

• Straight Grade Only

VOLTAGE:

• 115/230 VAC, 50/60Hz

FLOW RATE:

• 100 kg / min

INLET / OUTLET:

• 1.5″ (3.8cm) dia NPT / .75″ (1.9cm) dia NPT

PROTOCOL:

• Bennett Open Protocol / Generic / RS485

APPROVALS:

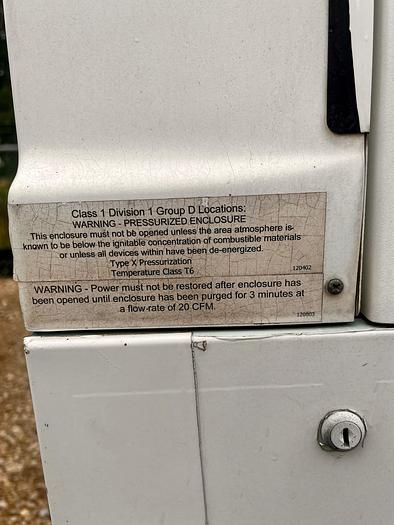

• Met Labs Certified for 1/2″, 3/4″, Purged and Non-Purged, NTEP Certificate of Conformance, PCI/PED 3.x Compliance, NFPA 52, NFPS 496, CSA 12.5-M99, ANSI/IAS NGVA 4.1-1999

OPERATING TEMPERATURE RANGE:

• -30°C to +50°C

HUMIDITY:

• 0 to 95% Non-Condensing

Pre-purchase inspections are welcomed during normal business hours upon appointment scheduled in advance. We would be happy to provide a complimentary transportation pick up from DFW Airport and back if you want to fly in and see/send someone to inspect the item in person. In addition, we can do Facetime/teams/ Zoom calls to go over the skid in person for any domestic /international procurement. Please keep in mind that we are in Dallas and therefore are on the US Central Time (CT) for any communication arrangements.

Shipping Arrangements: The unit is currently located in our yard South of Dallas, Texas. We can assist with shipping arrangements and when properly scheduled, we will provide loading service at no additional charge.

Payment: Payment in full FOB for our yard in South Dallas is required for equipment procurement. We prefer to see/meet the purchaser to ensure we can provide adequate after-sale support to set your project for success. We will require a verifiable Cashier check as a payment if you are planning to come in person. We will require a wire transfer in full with the transaction cleared the company account before releasing the equipment to any 3-rd party shipper companies.

We are here to help and make this transaction as simple as possible, but we will take all necessary measures to protect us and you.
