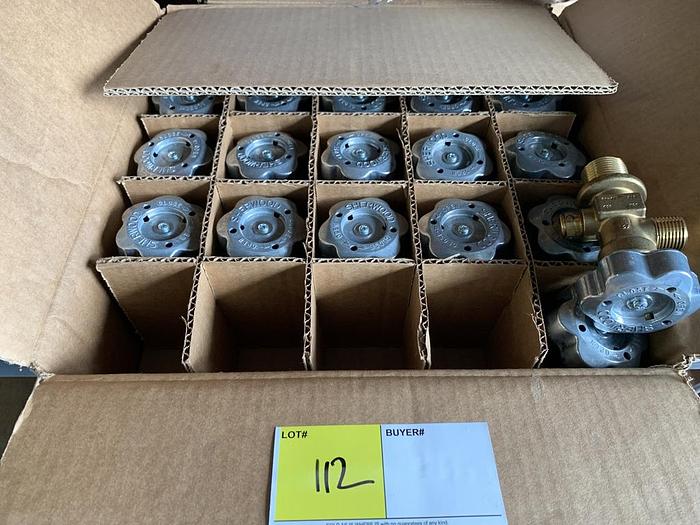

Sherwood CGA350 3/4" UNF 3360 PSIG

Valve Construction:

• Automated assembly and testing processes ensure exceptional quality
• 100% helium leak tested
• Heavy-duty forged brass body for durability and high-pressure
• Precisely machined internal components meet the most stringent international valve performance standards
• Pressure Relief Device (PRD) is a unitized plug design that provides excellent flow characteristics, ensures proper assembly and tamper resistance
• Improved metal-to-metal seal below bonnet threads prevents pressure in the threads at the top of valve body
• Direct-drive stem design with optimized O-ring (GSV) or double O-ring (GSVH) seal reduces friction and operates at exceptionally low torque levels
• Inlet and outlet thread configurations are available for a broad spectrum of customer, country, and code specifications
• Inlet tapped (1/4″ NPT) for dip tube as required

VALVE FEATURES

• Gas Service: Hydrogen and Carbon Monoxide
• CGA350 outlet
• Inlet Thread Size: 3/4″ NGT
• Outlet Thread Size: .825-14 NGO LH Ext.
• Maximum Working Pressure: 3360, 3775, and 4000 PSI Availability
• Operating Temperature Range: -50° F to +149° F
• Storage Temperature Range: -65° F to +155° F
• Leak Rate Internal/External: 1×10-3 atm cc/sec.
• Cv Flow Factor: Standard: .690
• Minimum Cycle Life: 2000 Cycles
• Closing Torque: 20–30 in.-lbs.
• Operating Torque: 10–20 in.-lbs.
• Bonnet Installation Torque: 50–60 ft.-lbs.
• Handwheel Nut Installation Torque: 25-45 in. – lbs.
• PRD Installation Torque: 25–35 in.-lbs.
• PRD Flow Capacity: 60 cfm @ 100 PSI
