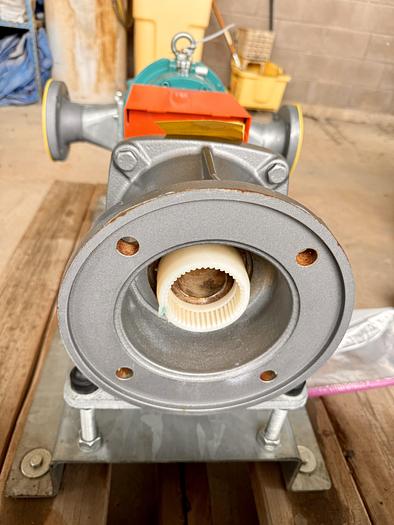

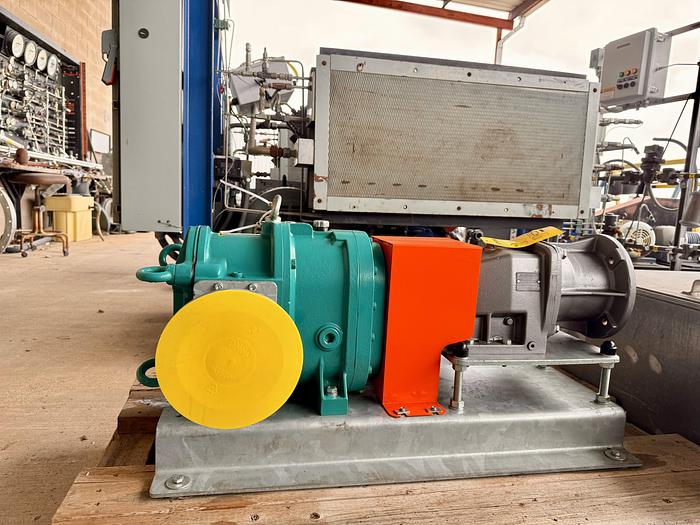

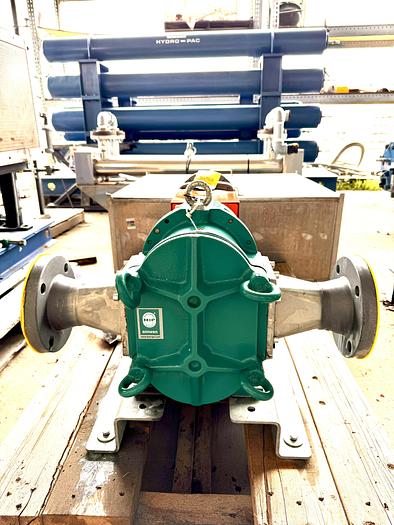

BORGER ROTARY LOBE PUMP

Specifications

• Make/ Model: WEG 01018ET3E215TC-W22
• Power: 10 HP
• Speed: 1765 RPM
• Phase/Hz/Voltage: 3/60/208-230/460
• Enclosure: TEFC
• Serial Number: 1031358456
• Flow Rates: 0.5-265 GPM @ 30PSI; 0.5-255 GPM @ 90PSI
• Max Pressure: 115PSI

Gear Reduction

• Make/Model: Nord SK 22-180TC2
• Output Speed: 467 RPM
• Gear Ratio: 3.75 :1
• Serial Number 201787902-200 23324848

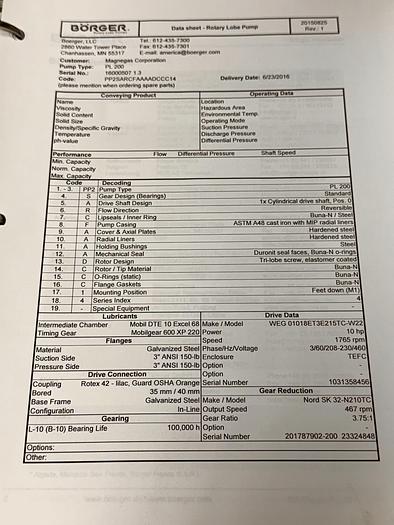

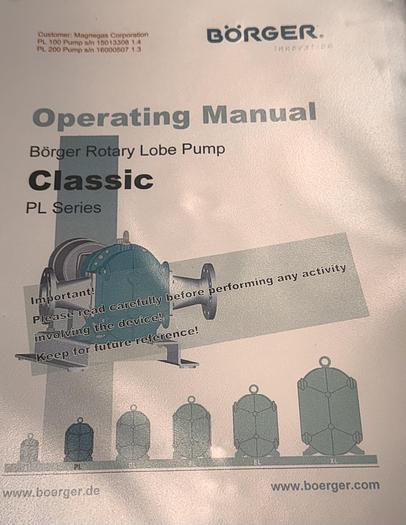

Pump Manual Code

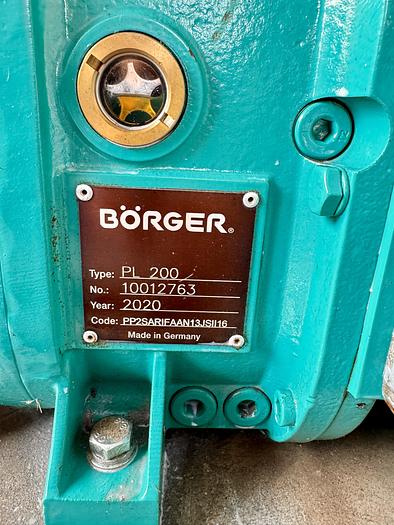

• Pump Typer: PL 100
• Gear Design (Bearings): Standard
• Drive Shaft Design: 1x Cylindrical drive shaft, Pos. 0
• Flow Direction: Reversible
• Lip seals/ Inner Ring: Buna-N/ Steel
• Pump Casing: ASTM A48 cast iron with MIP radial liners
• Cover & Axial Plates: Hardened Steel
• Radial Liners: Hardened Steel
• Holding Bushings: Steel
• Mechanical Seal: Duronit seal faces, Buna-N o-rings
• Rotor Design: Tri-lobe screw, elastomer coated
• O- Rings (Static): Buna-N
• Flange Gaskets: Buna-N
• Mounting Position: Buna-N

Pre-purchase inspections are welcomed during normal business hours upon appointment scheduled in advance. We would be happy to provide a complimentary transportation pick up from DFW Airport and back if you want to fly in and see/send someone to inspect the item in person. In addition, we can do Facetime/teams / Zoom calls to go over the skid in person for any domestic /international procurement. Please keep in mind that we are in Dallas and therefore are on the US Central Time (CT) for any communication arrangements.

Shipping Arrangements: The unit is currently located in our yard South of Dallas, Texas. We can assist with shipping arrangements and when properly scheduled, we will provide loading service at no additional charge.

Payment: Payment in full FOB for our yard in South Dallas is required for equipment procurement. We prefer meeting people buying our equipment in person to discuss all aspects of the project requirements and ensure adequate sales support to set your project up for success. We will require a verifiable Cashier check as a payment if you are planning to come in person. We will require a wire transfer in full with the transaction cleared the company account before releasing the equipment to any 3-rd party shipper companies. We are here to help and make this transaction as simple as possible, but we will take all necessary measures to protect us and you.

Please feel free to call/contact Gas Equipment 4 Sale with any questions; we will be happy to answer your online inquiries and/or jump on the call to see how any of our available Gas Equipment 4 Sale can help you meet your project needs
