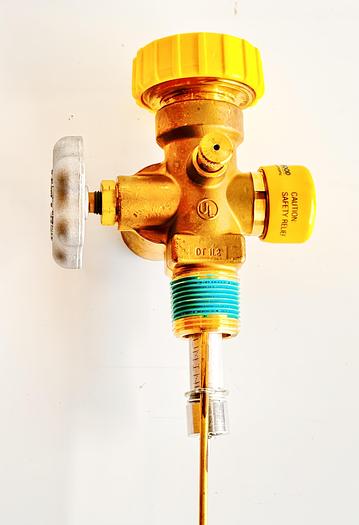

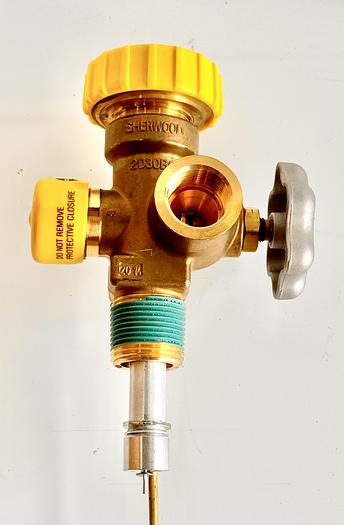

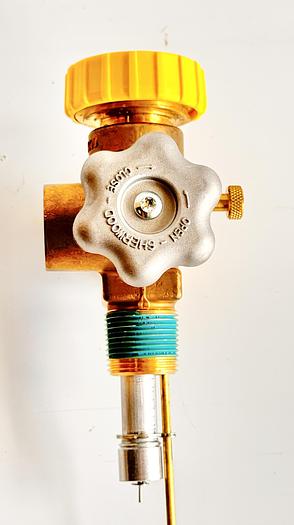

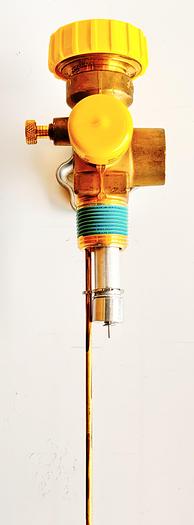

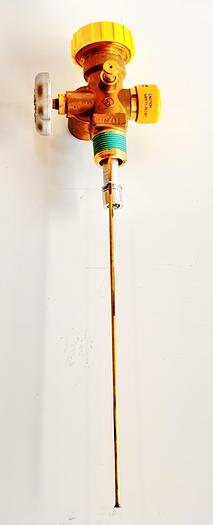

Multi-Service 100-200# DOT Cluster Valve 3/4" NGT W/ Fill & 375 PSI Relief W/ 11.2" Diptube

Application:

Intended for use in vapor withdrawal service for DOT containers up to 200 lb. LPG capacity as fuel line shutoff valves in combination with a fill and vapor relief valve. Ideal for on-site filling without interruption of service by combining all functions into a single 3/4” NPT tank opening.

Features:

• One-piece forged brass body construction
• Integral Fill Valve
• Easy to repair/replace bonnet assembly
• Integral 375 PSI relief valve
• Heavy-duty replaceable zinc hand wheel
• Liquid splash tube to prevent liquid in vapor opening
• Optional MEJ401SC self-cleaning LE-filled liquid vent screw
• F. POL vapor outlet with shutoff

Specifications:

• Sherwood Part Number: 1132E510-375
• Inlet: 3⁄4" NGT
• Outlet: CGA 510
• PRD: CG-7
• PRV Start Discharge Pressure: 375
• PRV Flow Capacity: 318a
• Rated Flow Rate Pressure: 480PSI
