4 Ariel Cng 250 HP compressors Up to 1287 SCFM each, Super low hours

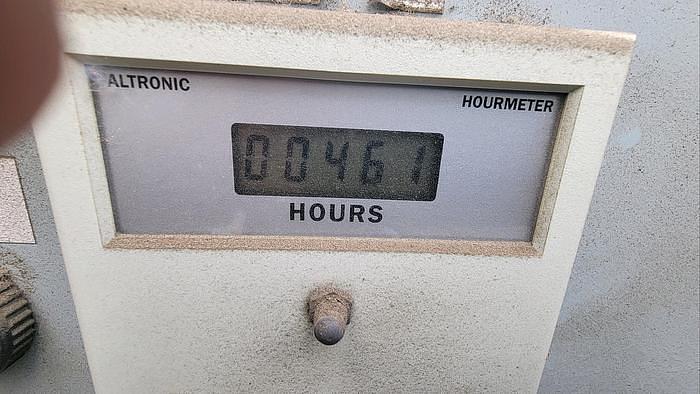

4 Identical 3 Stage Ariel 250 HP compressors with less than 500 hours on each.

Maximum flow rate 1287 CFM. at 500 PSI inlet. The compressors can run from min 235 PSI inlet.

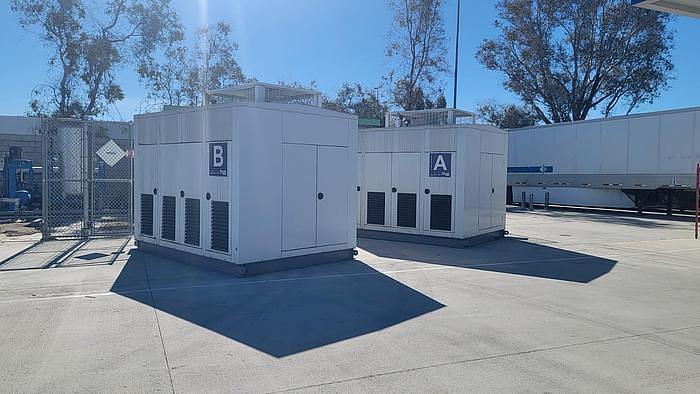

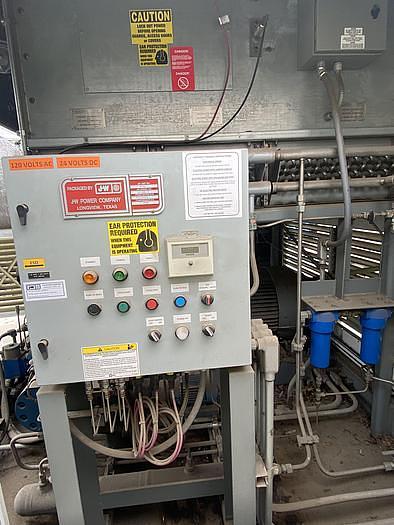

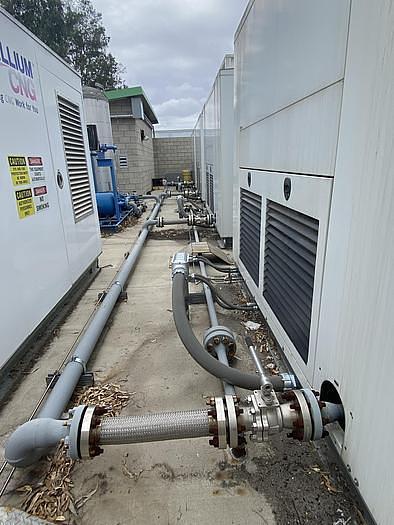

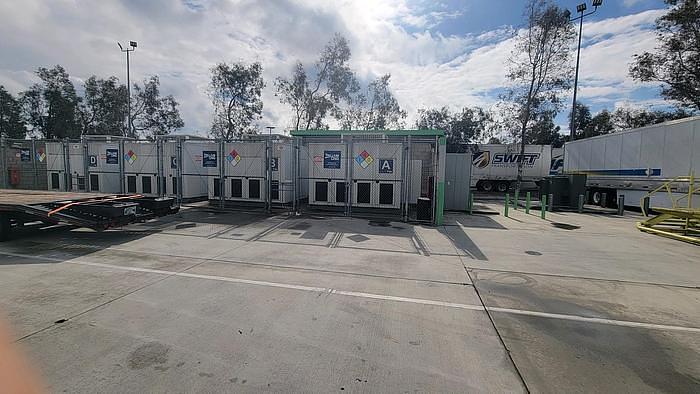

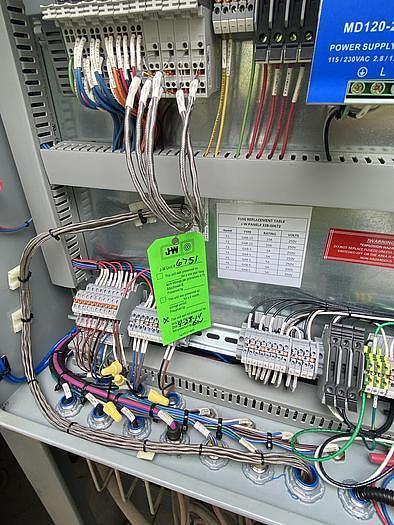

All 4 compressors came from the same CNG fueling site and currently operated by 1 control Panel. Should you decide to separate them we can assist in designing individual or group panels to address your operational needs ( for an extra cost).

NOTE: The heavily discounted compressor advertisment pricing reflects price per unit.

Specifications:

Model: 449T

Type: Electric

Rated RPM: 1800

Frame: JGQ/2

Stroke, in: 3.00

Rod Dia, in: 1.125

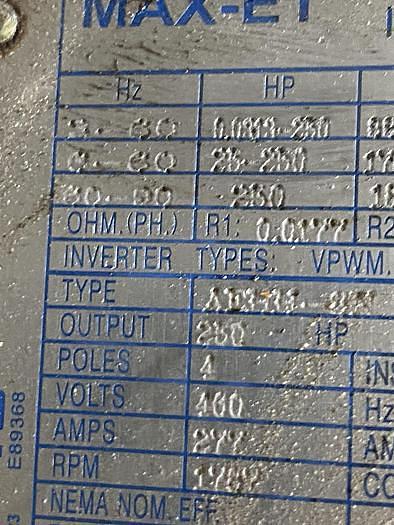

Mfg: TECO

Max RL Tot, lbf: 20000 Max RL Tens, lbf: 10000 Max RL Comp, lbf: 11000

Rated RPM: 1800 Rated BHP: 280.0 Rated PS FPM: 900.0 BHP: 250

Calc RPM: 1775.0 BHP: 228 Calc PS FPM: 887.5 Avail: 250

PACKING COOLING

Services

• Gas Model VMG-APRNGL2
• Stage Data: 1 (SG) 2 3
• Target Flow, SCFM 0.000 0.000 0.000
• Flow Calc, SCFM 1073.988 1074.000 1073.987
• BHP per Stage 106.0 64.6 51.6
• Specific Gravity 0.6100 0.6103 0.6103
• Ratio of Sp Ht (N) 1.2819 1.2858 1.2662
• Comp Suct (Zs) 0.9373 0.8784 0.8314
• Comp Disch (Zd) 0.9380 0.9212 0.9593
• Pres Suct Line, psig 350.00 N/A N/A
• Pres Suct Flg, psig 350.00 1109.81 2329.12
• Pres Disch Flg, psig 1119.81 2348.04 4343.14
• Pres Disch Line, psig N/A N/A 4300.00
• Pres Ratio F/F 3.117 2.102 1.860
• Temp Suct, F 80.00 130.00 130.00
• Temp Clr Disch, F 130.00 130.00 120.00
• Cylinder Data: Throw 2 Throw 1 Throw 1

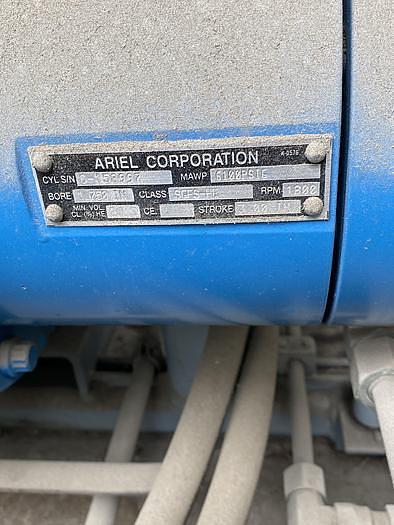

• Cyl Model 3-5/8JG 3SG-CE 1-3/4SG-FSHE
• Cyl Bore, in 3.625 3.000 1.750
• Cyl RDP (API), psig 1490.9 2727.3 5545.5
• Cyl MAWP, psig 1640.0 3000.0 6100.0
• Cyl Action DBL CE HE
• Cyl Disp, CFM 60.5 18.7 7.4
• Pres Suct Intl, psig 320.47 1082.77 2312.92
• Temp Suct Intl, F 85 133 132
• Pres Disch Intl, psig 1205.07 2416.30 4452.30
• Temp Disch Intl, F 264 248 219
• HE Suct Gas Vel, FPM 9705 0 2650
• HE Disch Gas Vel, FPM 8981 N/A 4836
• HE Spcrs Used/Max 0/1 N/A N/A
• HE Vol Pkt Avail 1.16+49.54 N/A No Pkt
• Vol Pkt Used 0.00 (V) % N/A % No Pkt

Pre-purchase inspections are welcomed during normal business hours upon appointment scheduled in advance. We would be happy to provide a complimentary transportation pick up from DFW Airport and back if you want to fly in and see/send someone to inspect the compressor skid in person. In addition, we can do Facetime/teams / Zoom calls to go over the skid in person for any domestic /international procurement. Please keep in mind that we are in Dallas and therefore are on the US Central Time (CT) for any communication arrangements.

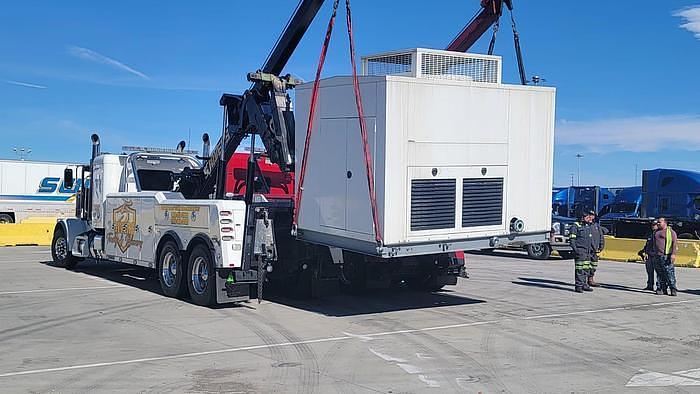

Shipping Arrangements: The unit is currently located in our yard South of Dallas, Texas. We can assist with shipping arrangements and when properly scheduled, we will provide loading service at no additional charge.

Payment: Payment in full FOB for our yard in South Dallas is required for equipment procurement. We prefer meeting people buying our equipment in person to discuss all aspects of the project requirements and ensure adequate sales support to set your project up for success. We will require a verifiable Cashier check as a payment if you are planning to come in person. We will require a wire transfer in full with the transaction cleared the company account before releasing the equipment to any 3-rd party shipper companies. We are here to help and make this transaction as simple as possible, but we will take all necessary measures to protect us and you.
