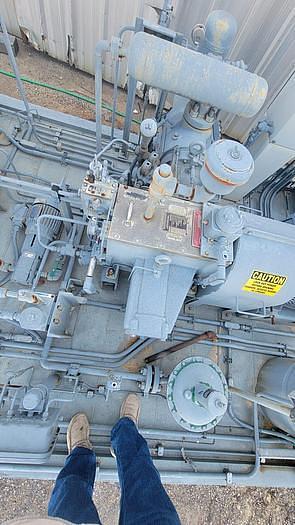

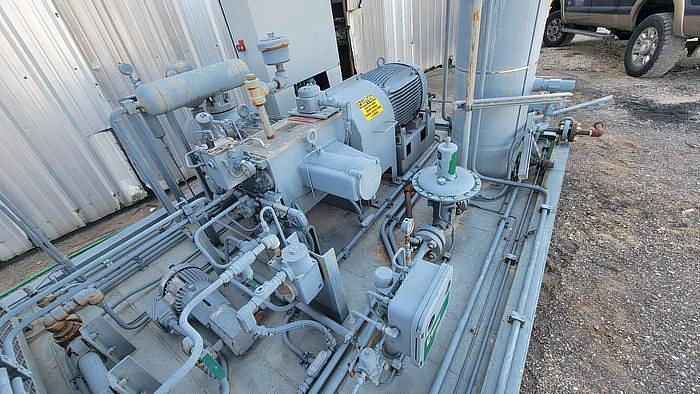

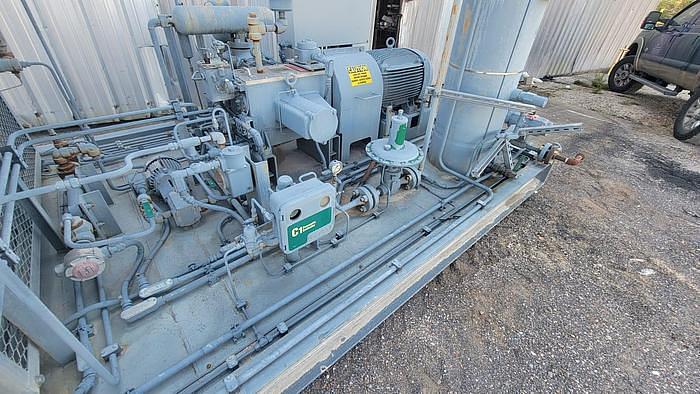

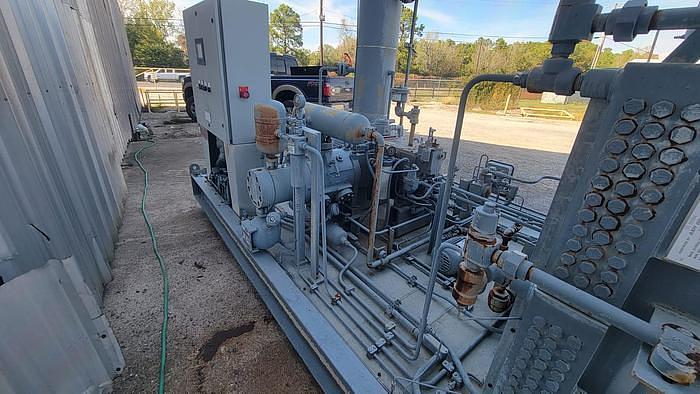

Ariel 75 HP Compressor 2 stage High Inlet low hours

Specificaitons:

75 HP 350 PSI min high output machine from 2010 used only 2 years only 1800 hours.

• 350 psi inlet will produce 139 cfm
• 500 psi inlet will produce 265 CFM
• 750 psi inlet will produce 446 CFM at 4500 psi discharge pressure

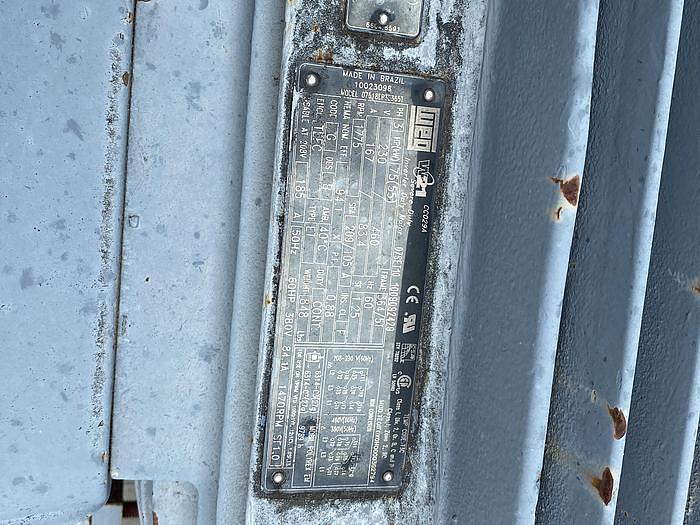

• Motor WEG 18000 RPM TEFC 1.15 365t part number 825-00123

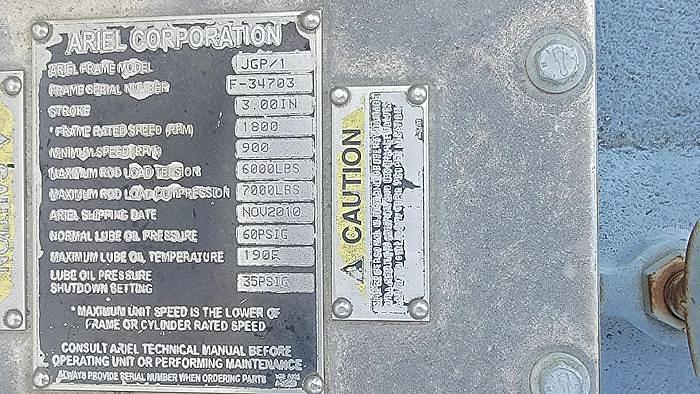

• COMPRESSOR FRAME 896-00655 F-34703

Compressor

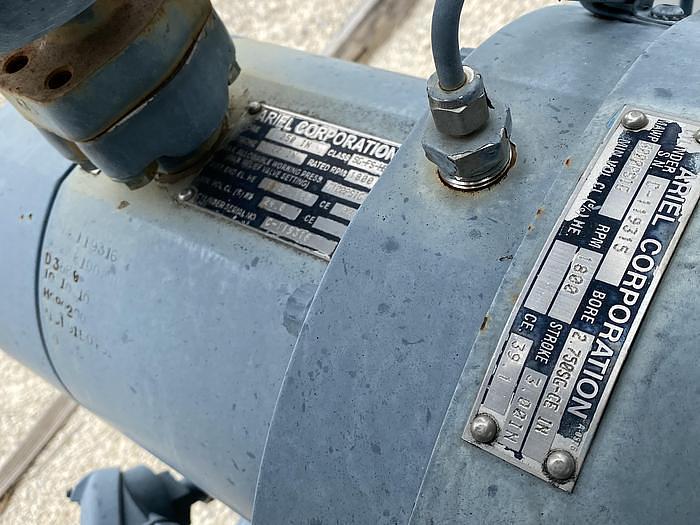

1ST STAGE CYLINDER 850-00452A C-119316

• ARIEL 2.75 X 3 SG-CE MAWP 3000 1

2ND STAGE CYLINDER 850-00452B C-119315

• ARIEL 1.25 X 3 SG-FE-HE MAWP 6100 1

• COMPRESSOR PRELUBE MOTOR 825-00131 FV2106639007
• TECO 1.0HP 1745RPM 3 PHASE 460V 1
• COMPRESSOR PRELUBE PUMP 766-00204 V1001116
• VIKING SG40729 1

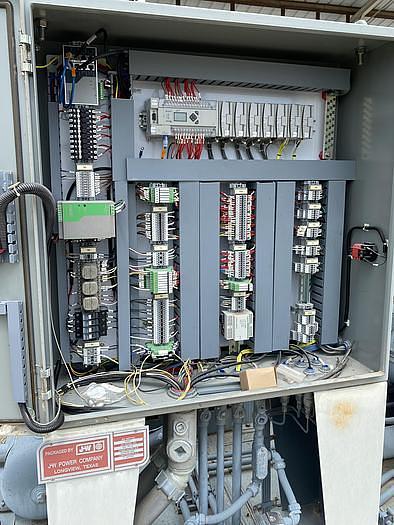

Panel

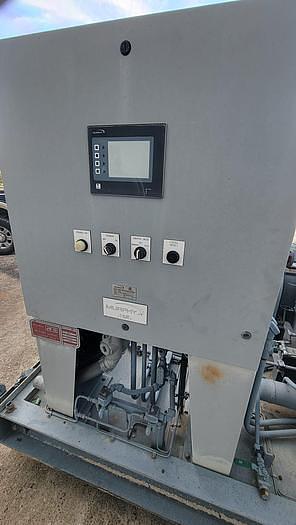

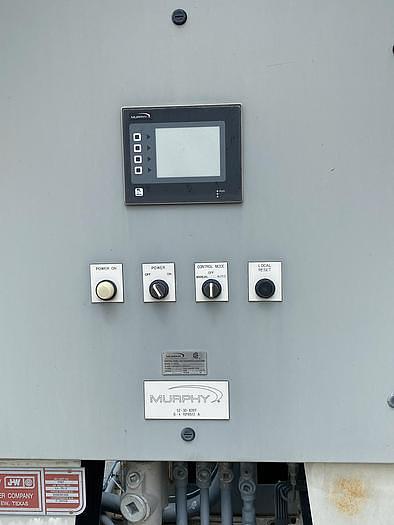

• CONTROL PANEL 328-00496 N/A
• MURPHY 50-30-8207 1
• CONTROL PANEL 328-00533 N/A
• MOTION INDUSTRIES INC SOFT START PANEL 1
• PANEL DRAWING 335-19112 REV 02
• MURPHY 50-30-8207 1
• PANEL DRAWING 335-19466 REV 04
• STANDARD SOFT START PANEL 1
• 4-20 mA INPUT MODULE 712-00961 N/A
• ALLEN BRADLEY 1769-IF4 5
• THERMOCOUPLE INPUT MODULE 712-00962 N/A
• ALLEN BRADLEY 1769-IT4 2
