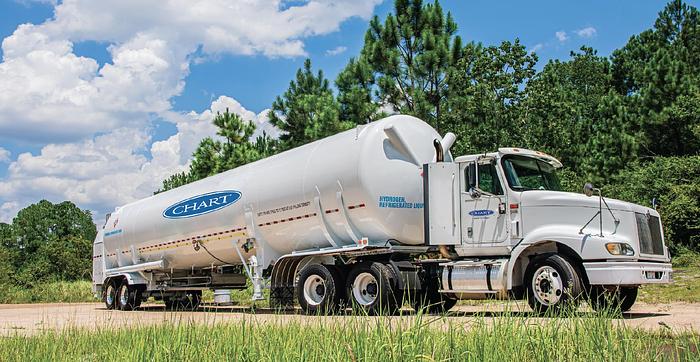

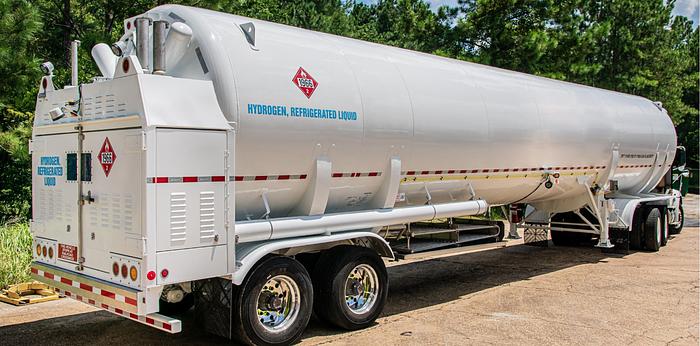

Brand New Liquid Hydrogen Trailer - LH2 Transport Trailer Model ST-17600H 155

We have 2 brand new liquid hydrogen trailers now available for an immediate purchase or long-term lease in the US.

Available Quantities: 2 units

Chart’s Liquid Hydrogen (LH2) transports are designed to provide the dependable solution

when delivering liquid hydrogen over-the-road.

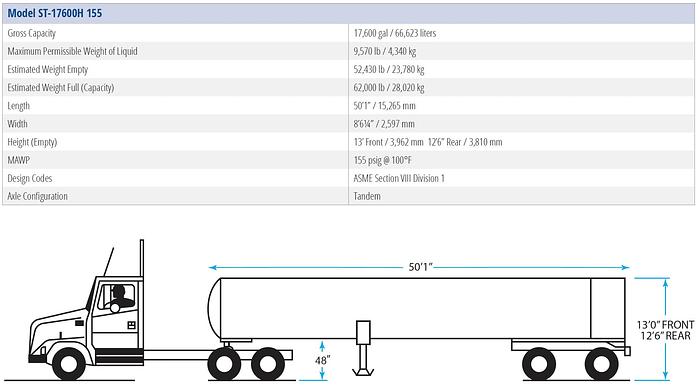

Specifications

Gross Capacity- 17600 gal / 66,623 liters

Maximum Permissible Weight of Liquid- 9,570 Lbs / 4,340 Kg

Estimated Weight Empty - 52,430 lb / 23,780 kg

Estimated Weight (Full Capacity) - 62,000 lb / 28,020 kg

Length - 50’1” / 15,265 mm

Width - 8’6¼” / 2,597 mm

MAWP - 155 psig @ 100°F

MDMT -423°F @ 155 PSI

Plus Static Head Plus Full EXT. VAC 170PSIA Job No. 9927-1

Design Code – ASME Section VIII Division 1

Axle Configuration – Tandem

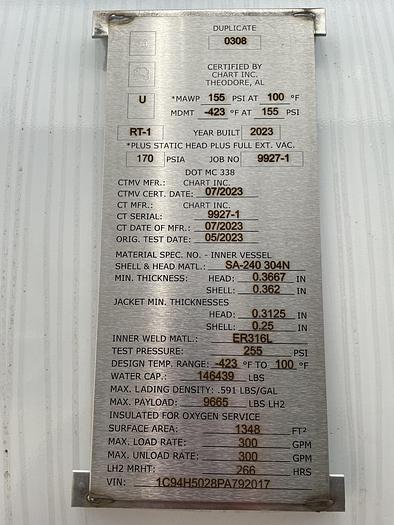

Material Specification. No. – Internal Vessel

Shell & Head Material – SA-240 304N

Min Thickness – (Head: 0.3667 IN), (Shell: 0.362 IN)

Jacket Min Thickness – (Head: 0.3125 IN), (Shell: 0.25IN)

Inner Weld Material – ER316L

Test Pressure: 255 PSI

Design Temp Range: -423°F to 100°F

Water Capacity: 146,439 Lbs

Maximum Lading Density .591/ Lbs

Maximum Pay Load: 9665 Lbs LH2

Insulated for O2 Service

Surface Area: 1348 FT2

Max Load Rate: 300 GPM

Max Unload Rate: 300 GPM

LH2 MRHT: 266 HRS

Pre-purchase inspections are welcomed during the normal business hours upon appointment scheduled in advanced. The unit is currently located in Alabama.

Payment: Payment in full is required for equipment procurement. We prefer meeting people buying equipment in person to discuss all aspects of the project requirements and ensure adequate sale support to set your project for success. We will require bank to bank wire transfer or verifiable cashier check as a payment if you are planning to come in person.

Please feel free to call / contact Gas Equipment 4 Sale with any questions; we will be happy to answer your online inquiries and/or jump on the call to see how any of our available Gas Equipment 4 Sale can help you to meet your project needs.

Pre-purchase inspections are welcomed during the normal business hours upon appointment scheduled in advanced. We would be happy to provide a complimentary transportation pick up from DFW Airport and back if you want to fly in and see / send someone to inspect the item in person. In addition, we can do facetime / teams / zoom calls to go over the item in person for any domestic /international procurement. Please keep in mind that we are in Dallas and therefore are on the US Central Time (CT) for any communication arrangements.

Shipping Arrangements: The unit is currently located at our yard South of Dallas, Texas. We can assist with shipping arrangements and when properly scheduled, we would provide loading service at no additional charge.

Payment: Payment in full FOB our yard in South Dallas is required for equipment procurement. We prefer see /meet the purchaser to ensure we can provide adequate after sale support to set your project for success. We will require verifiable Cashier check as a payment if you are planning to come in person. We will require wire transfer in full with transaction cleared the company account prior to releasing the equipment to any 3-rd party shipper companies. We are here to help and make this transaction as simple as possible, but will take all necessary measures to protect us and you.

Feel free to call / contact Gas Equipment 4 Sale with any questions; we will be happy to jump on the call and see if / how procuring those units can help you to meet your project needs.
