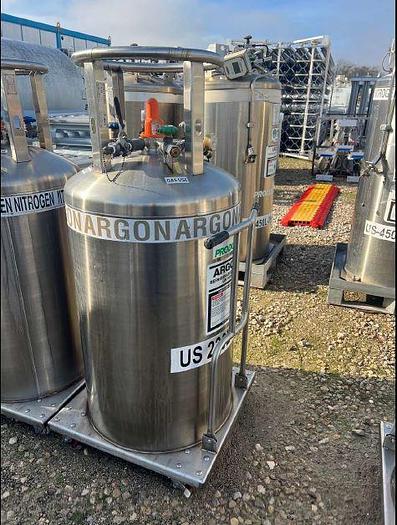

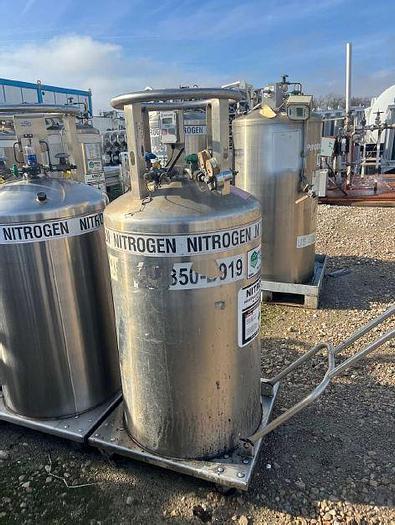

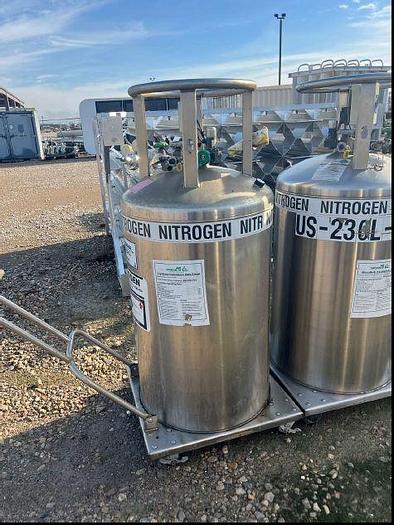

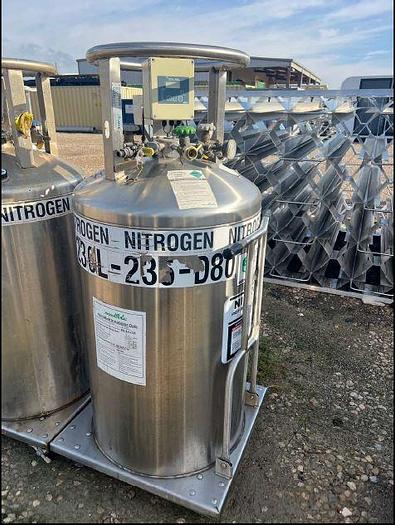

Chart 230L Microbulk Dewar- Sold as lot of 4. Can be used for Liquified Argon, Liquified Oxygen, Liquified Nitrogen

Sold in Set of 4.

Can be used for Liquefied Argon, Liquefied Oxygen, Liquefied Nitrogen

The specifications below are for individual Units:

Capacity: 230(L)

MAWP: 350 PSIG

Max Pre-Set Operating Range: 300 PSIG

Design Specs: DOT

Gascious Storage Capacity:

• Nitrogen: 4734 SCF
• Oxygen: 5930 SCF
• Argon: 5763 SCF
• CO2: 4500 SCF

Thermal Performance Ner% Per Day

• N2: 1.8%
• O2, Ar: 1,12%
• Co2: .6%

Gas Delivery Rate

• (LIN/LAR/LOX): 400 SCF/H
• (CO): 133 SCF/H

Dimensions:

• Diameter: 26 In
• Height: 62.8/62
• Weight 240Lbs

Pre-purchase inspections are welcomed during the normal business hours upon appointment scheduled in advanced. We would be happy to provide a complimentary transportation pick up from DFW Airport and back if you want to fly in and see / send someone to inspect the item in person. In addition, we can do facetime / teams / zoom calls to go over the item in person for any domestic /international procurement. Please keep in mind that we are in Dallas and therefore are on the US Central Time (CT) for any communication arrangements.

Shipping Arrangements: The unit is currently located at our yard South of Dallas, Texas. We can assist with shipping arrangements and when properly scheduled, we would provide loading service at no additional charge.

Payment: Payment in full FOB our yard in South Dallas is required for equipment procurement. We prefer see /meet the purchaser to ensure we can provide adequate after sale support to set your project for success. We will require verifiable Cashier check as a payment if you are planning to come in person. We will require wire transfer in full with transaction cleared the company account prior to releasing the equipment to any 3-rd party shipper companies. We are here to help and make this transaction as simple as possible, but will take all necessary measures to protect us and you.

Feel free to call / contact Gas Equipment 4 Sale with any questions, we will be happy to jump on the call and see if / how procuring those units can help you to meet your project needs.
