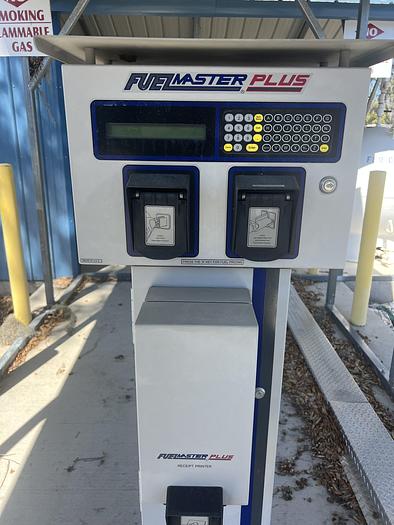

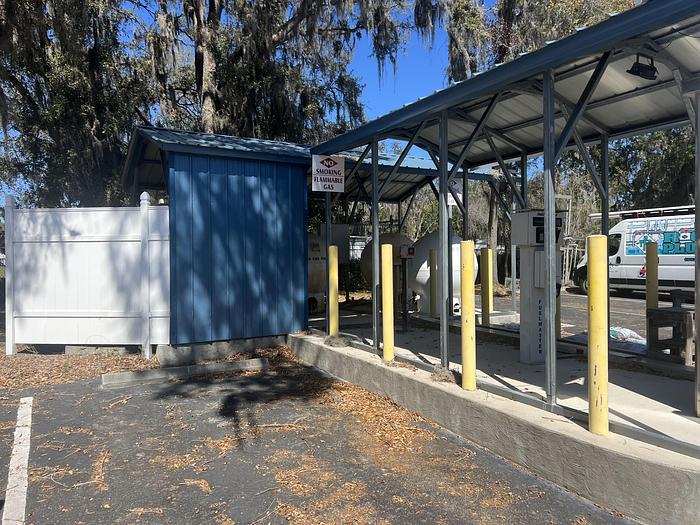

4 Stage CNG Fueling Station with Fuel Master Dispenser and 3 CNG Storage Spheres

Gas Equipment for Sale has listed this bundle on consignment from a customer. Per their record, all units in the bundle were in full production operation until they were decommissioned. This unit was built in 2014 and has 1014 hours on it. The oil was changed at 50 hours and then every 250 hours. The unit was decommissioned on 03/03/2025. The Specs are listed below.

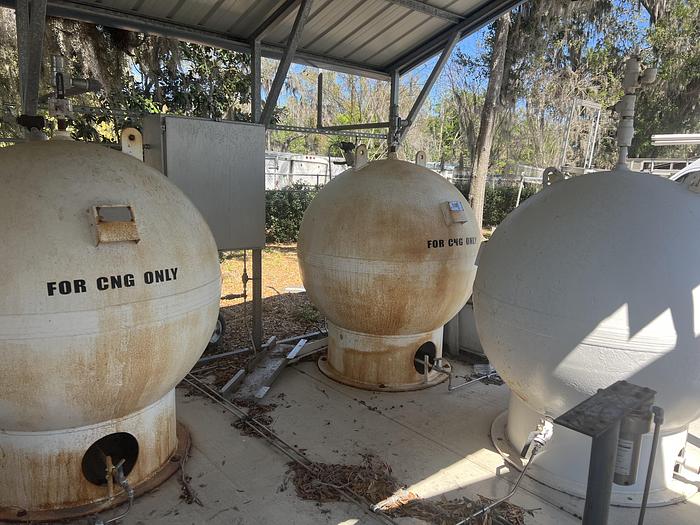

Fuel Master Dispenser and 3 CNG Storage Spheres

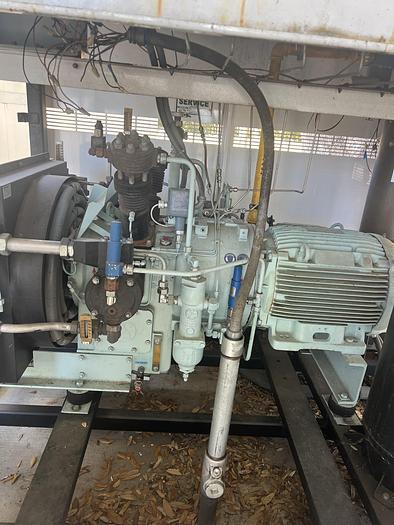

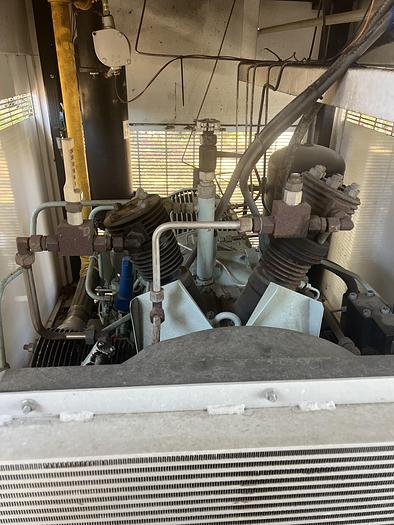

SE 500 Specifications:

Inlet Pressure: 3PSI

Outlet Pressure: 5000PSI

Flow Rate: 85 SCFM; 50GGE/hr

Current @460 Volts: 82 Amps

Current @230 Volts: 164 Amps

Weight: 2,800 Lbs

Noise Level @ 3 Ft: 98 Db

Delta Temperature(gas outlet vs. ambient): 18 degrees Farenheight

Oil Sump Capacity: 16.9 Quarts

Cooling Method: Air-Cooled

Drive Type: Direct Drive

Stages/ Cylinders: 4/4

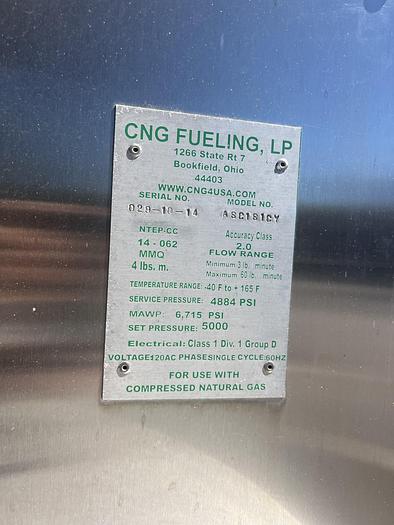

CNG Fueling, LP Tag Specs:

Accuracy Class: 2.0

Flow Range: Minimum 3 Lbs/Minute / Maximum: 60 Lbs/ Minute

Temperature Range: -40 degrees Fahrenheit to +165 degrees Fahrenheit

Service Pressure: 4,884 PSI

Mawp: 6,715 PSI

Set Pressure: 5,0004

Electrical: Class 1 Div. 1 Group D

Voltage: 120 AC Phase Single Cycle: 60 Hz
